Place of Origin:
China
Brand Name:
FH®
Certification:
ISO 9001, ISO14001
Model Number:
FH 7000
Custom Monel K-500 Flanges Manufacturer | UNS N05500
FH® Alloy manufactures custom Monel K-500 flanges according to customer drawings, samples and technical specifications.

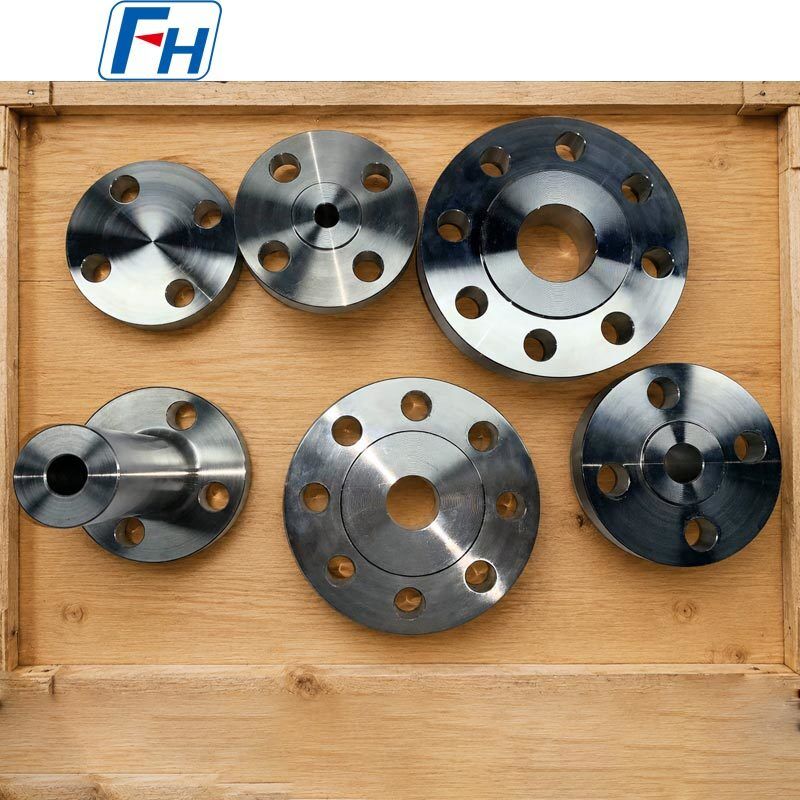

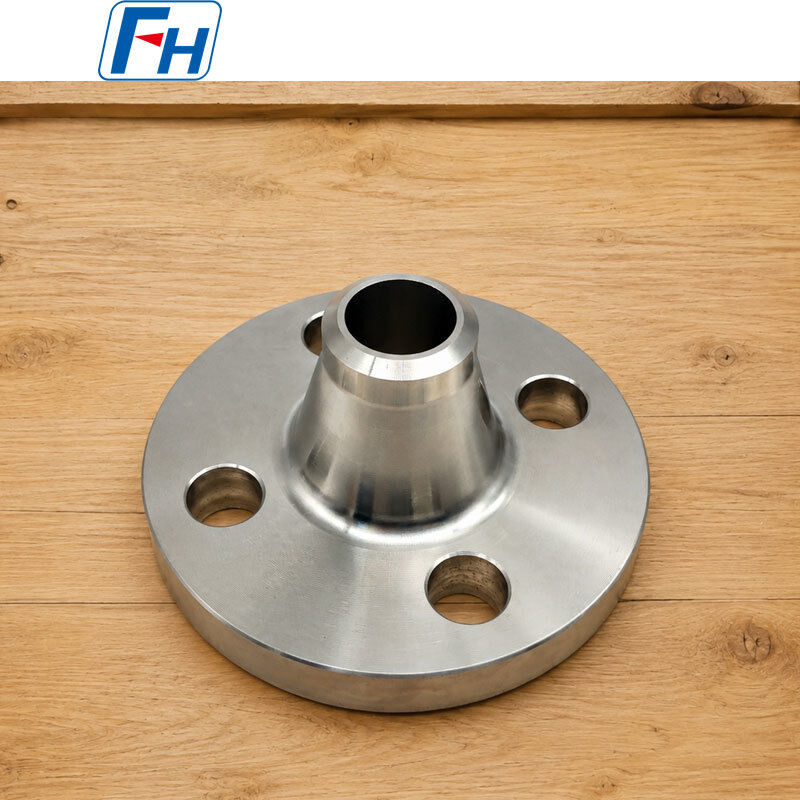

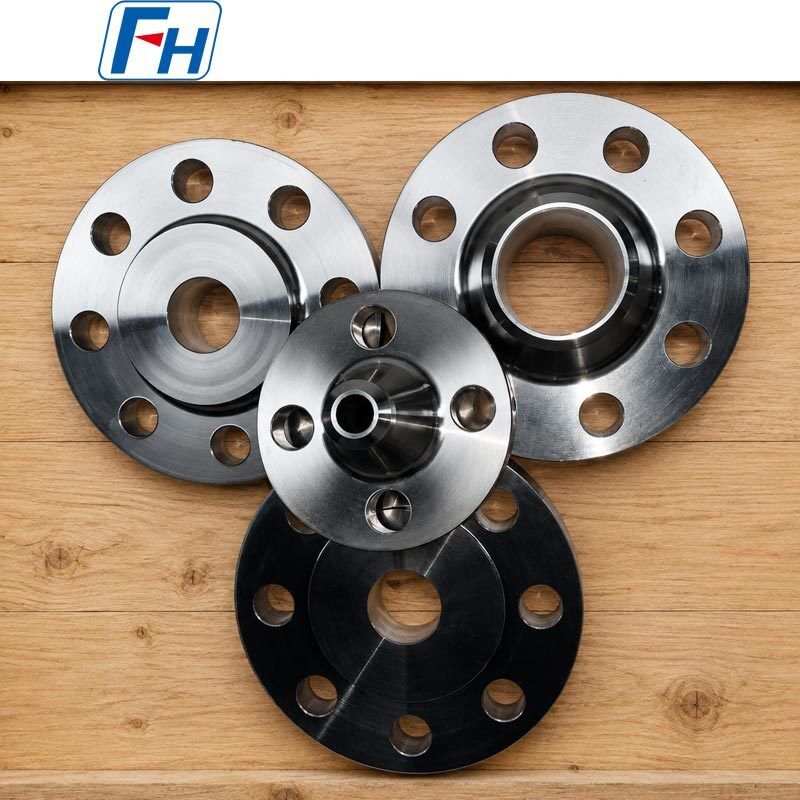

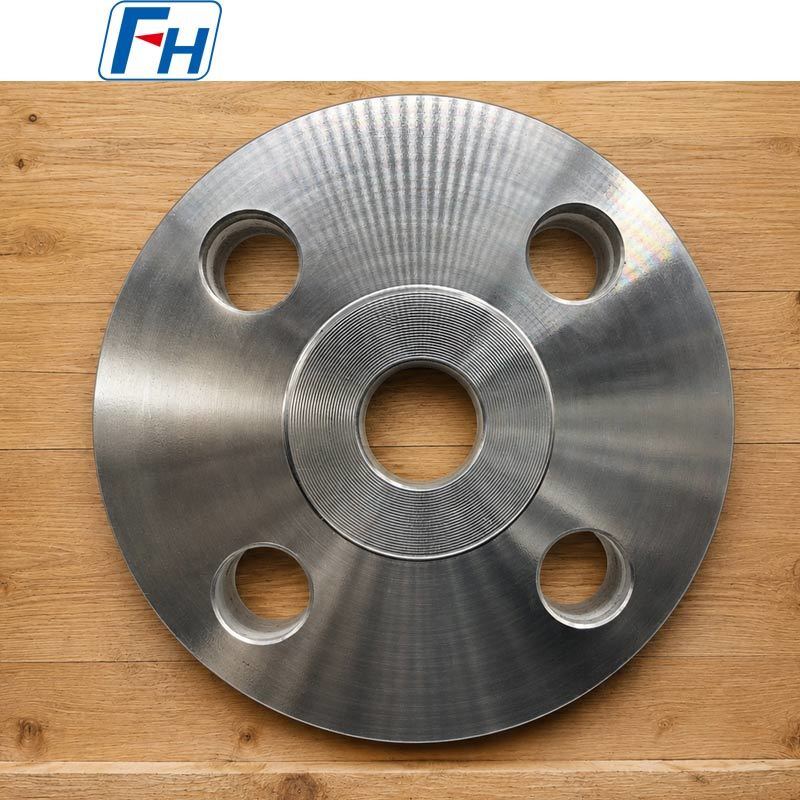

The products shown are custom-machined flange components with different bore sizes, hub configurations, thicknesses and bolt-hole patterns. They are designed for industrial equipment where corrosion resistance, high mechanical strength and dimensional accuracy are required.
From forged blanks to finished machining, FH® Alloy can supply Monel K-500 flanges for marine, offshore, chemical processing, pump, valve and other demanding industrial applications.
Product Specifications
| Item | Details |
| Product | Custom Monel K-500 Flange |
| Material | Monel K-500 |
| UNS Number | N05500 |
| Alloy Type | Nickel-Copper Alloy |
| Manufacturing | Forging + Precision Machining |
| Flange Design | Standard or Custom |
| Bore | Through Bore / Small Bore / Custom |
| Hub Design | With Hub / Without Hub |
| Bolt Holes | Customized |
| Surface | Precision Machined |
| Production | OEM / Drawing-based |
| Manufacturer | FH® Alloy |
Dimensions, tolerances, heat-treatment condition and inspection requirements are manufactured according to the approved customer drawing and purchase specification.
⚙️ Why Choose Monel K-500 for Flanges?
Monel K-500 is a precipitation-hardenable nickel-copper alloy that combines the corrosion resistance associated with nickel-copper alloys with higher strength and hardness.
High Mechanical Strength
Monel K-500 is suitable for flange components subjected to mechanical loading, clamping forces and demanding equipment operating conditions.
Corrosion Resistance
The alloy provides good resistance in many seawater, marine and industrial environments, making it suitable for corrosion-resistant equipment connections.
Suitable for Marine Service
Monel K-500 is widely considered for components used in seawater-handling and offshore equipment where both strength and corrosion resistance are important.
Precision Machining Capability
Custom flange faces, hubs, bores, bolt-hole patterns and mounting surfaces can be machined according to customer drawings.
📐 Custom Monel K-500 Flange Capabilities
Unlike standard catalog flanges, the components shown are produced according to specific customer requirements.
FH® Alloy can customize:
Both standard and non-standard Monel K-500 flanges can be evaluated.
🔧 Available Flange Configurations
FH® Alloy can manufacture different flange configurations, including:
For non-standard parts, production is based primarily on the customer's engineering drawing.
🏭 Manufacturing Process
A typical manufacturing route includes:
Machining allowances and process sequence are determined according to the flange geometry and final tolerance requirements.
🎯 Precision Machining
For customized flange components, correct fit and alignment are often more important than appearance alone.
FH® Alloy can control critical features such as:
Critical tolerances should be marked clearly on the drawing before production.
🌊 Typical Applications
Custom Monel K-500 flanges may be used in:
Final material selection should consider the actual medium, temperature, pressure, mechanical loading and service environment.
🔍 Inspection & Quality Control
Inspection can be arranged according to customer requirements, including:
📄 Available Quality Documents
Depending on order requirements, FH® Alloy can provide:
✅ Why FH® Alloy?
Custom Manufacturing
We manufacture Monel K-500 flanges based on customer drawings rather than limiting customers to fixed standard dimensions.
Forging + Machining
Forging and precision machining can be coordinated to achieve the required mechanical properties and final dimensions.
Complex Flange Designs
Different hubs, bores, bolt-hole patterns and non-standard mounting structures can be manufactured according to equipment requirements.
Prototype & Batch Production
Custom quantities can be evaluated for prototypes, replacement components and repeat production orders.
Export Supply
Finished components can be protected and packed in reinforced wooden cases for international transportation.
❓ FAQ
Q1: Can FH® Alloy manufacture Monel K-500 flanges according to our drawing?
Yes. FH® Alloy specializes in customized components and can manufacture Monel K-500 flanges according to 2D drawings, 3D models, samples or detailed technical specifications.
Q2: Can you manufacture non-standard flange dimensions?
Yes. Outside diameter, bore size, thickness, hub dimensions, bolt-hole pattern and mounting features can all be customized.
Q3: Are these Monel K-500 flanges forged or cast?
For many high-strength flange applications, forged blanks followed by machining are preferred. The final manufacturing route is determined according to the drawing, dimensions and technical requirements.
Q4: Can the flange be supplied fully machined?
Yes. FH® Alloy can supply forged blanks, rough-machined components or fully finished Monel K-500 flanges.
Q5: Can you machine different bore and hub designs?
Yes. Straight bores, stepped bores, hubbed structures, counterbores, shoulders and other customized features can be machined according to the drawing.
Q6: What tolerances can you achieve?
Tolerance capability depends on the flange diameter, geometry and specific feature. Critical tolerances such as bore diameter, runout, flatness and concentricity should be specified on the drawing for technical review.
📩 Request a Quote
For a fast and accurate quotation, please send:
Send your Monel K-500 flange drawing to FH® Alloy for technical review and quotation.
