Place of Origin:
China
Brand Name:
FH
Certification:
ISO9001, ISO14001
Model Number:
FH 0018
Submerged Arc Welding Reinforces the Thick-walled Weld Seam of the 310S Baskets Allowing it to Support Heavy Workpieces Without Deformation
Introduction:
our welding heat treatment baskets are designed as per customer's requirement. After considering various parameters while designing ,such as maintaing a healthy charge to weight ratio, finally the appropriate material is chosen keeping the application in mind.Our Cast Trays and Baskets find their application in various Thermal and Chemical Processes including Nitriding.
Production Process: wax lost process,investment process, EPC process & sand process.
Lost Foam Casting: material tray, material frame, pit furnace, furnace floor;
Precision Casting: precision castings such as material trays, material baskets, multi-purpose furnace tooling, mixing blades, etc.
Heat Treatment Baskets Imension:
Standard heat treatment baskets with varies of dimensions and heights are available,compatible with the most common furnaces around the world, such as IPSEN, AICHELIN, AFC, ECM, BMI, FENGDONG and ect or tailor-made solutions according to your specific needs.
Heat Treatment Baskets Material:
Different material is available for different heat treatment.Provide us the max. working temperature and cooling medium, our technical department will recommend the most suitable material.
Application Areas:
Long-term supply of steel castings for electric furnaces, heat treatment plants, chemical equipment plants and cement plants. Materials include 06Cr19Ni10, Ni7N, 0Cr23Ni13, Cr25Ni20, etc., industrial furnace castings (furnace floor, furnace tube, furnace seat, material tray, material Basket, material frame seat, box, fan blade, fan shaft, etc.).
Features:
Advantages:
Material Grade Table:
| Heat-resistant Steel | |||||||||||||
| / | GB | DIN | ASTM | JIS | Chemical Composition (%) | Maximum Operation Temperature | |||||||
| C | Si | Mn | Cr | Ni | Nb/Cb | Mo | Other | ||||||
| 1 | ZG40Cr27Ni4 | 1.4823 | HD | SCH11 | 0.30 - 0.50 | ≤2.00 | ≤1.00 | 24.00 - 28.00 | 4.00 - 6.00 | - | ≤0.50 | - | 1050℃ |
| 2 | ZG40Cr22Ni10 | 1.4826 | HF | SCH12 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 19.00 - 23.00 | 8.00 - 12.00 | - | ≤0.50 | - | 950℃ |
| 3 | ZG30Cr28Ni10 | - | HE | SCH17 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 8.00 - 11.00 | - | - | - | 1050℃ |
| 4 | ZG40Cr25Ni12 | 1.4837 | HH | SCH13 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 27.00 | 11.00 - 14.00 | - | ≤0.50 | - | 1050℃ |
| 5 | ZG30Cr28Ni16 | - | HI | SCH18 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 14.00 - 18.00 | - | - | - | 1100℃ |
| 6 | ZG40Cr25Ni20Si2 | 1.4848 | HK | SCH21 | 0.30 - 0.50 | ≤1.75 | ≤1.50 | 23.00 - 27.00 | 19.00 - 22.00 | - | ≤0.50 | - | 1100℃ |
| 7 | ZG30Cr20Ni25 | - | HN | SCH19 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 19.00 - 23.00 | 23.00 - 27.00 | - | - | - | 1100℃ |
| 8 | ZG40Cr19Ni39 | 1.4865 | HU | SCH20 | 0.35 - 0.75 | ≤2.50 | ≤2.00 | 17.00 - 21.00 | 37.00 - 41.00 | - | - | - | 1020℃ |
| 9 | ZG40Cr15Ni35 | 1.4806 | HT | SCH15 | 0.35 - 0.70 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1000℃ |
| 10 | ZG40Cr25Ni35Nb | 1.4852 | HPCb | SCH24Nb | 0.30 - 0.50 | ≤2.00 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | 0.80 - 1.80 | ≤0.50 | - | 1100℃ |
| 11 | ZG40Cr19Ni39Nb | 1.4849 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 18.00 - 21.00 | 36.00 - 39.00 | 1.20- 1.80 | ≤0.50 | - | 1100℃ |
| 12 | ZG40Cr24Ni24Nb | 1.4855 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 23.00 - 25.00 | 23.00 - 25.00 | 0.80 - 1.80 | ≤0.50 | - | 1050℃ |
| 13 | ZG40Cr25Ni35 | 1.4857 | HP | SCH24 | 0.35 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1100℃ |
| 14 | ZG1Cr20Ni32Nb | 1.4859 | - | - | 0.06 - 0.15 | 0.50 - 1.50 | ≤2.00 | 19.00 - 21.00 | 31.00 - 33.00 | 0.50 - 1.50 | ≤0.50 | - | 1050℃ |
| 15 | ZG45Cr12Ni60 | - | HW | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 10.00 - 14.00 | 58.00 - 62.00 | - | - | - | 1100℃ |
| 16 | ZG45Cr18Ni66 | - | HX | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 64.00 - 68.00 | - | - | - | 1100℃ |
| 17 | ZG1Cr28Co50 | 2.4778 | - | - | 0.05 - 0.25 | 0.50 - 1.00 | ≤1.50 | 27.00 - 30.00 | ≤1.00 | ≤0.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 18 | ZG30Cr28Co50Nb | 2.4779 | - | - | 0.25 - 0.35 | 0.50 - 1.50 | 0.50 - 1.50 | 27.00 - 29.00 | - | 1.50 - 2.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 19 | ZG40Cr28Ni48W5 | 2.4879 | - | SCH42 | 0.35 - 0.55 | 1.00 - 2.00 | ≤1.50 | 27.00 - 30.00 | 47.00 - 50.00 | - | ≤0.50 | W:4.0 - 5.5 | 1200℃ |

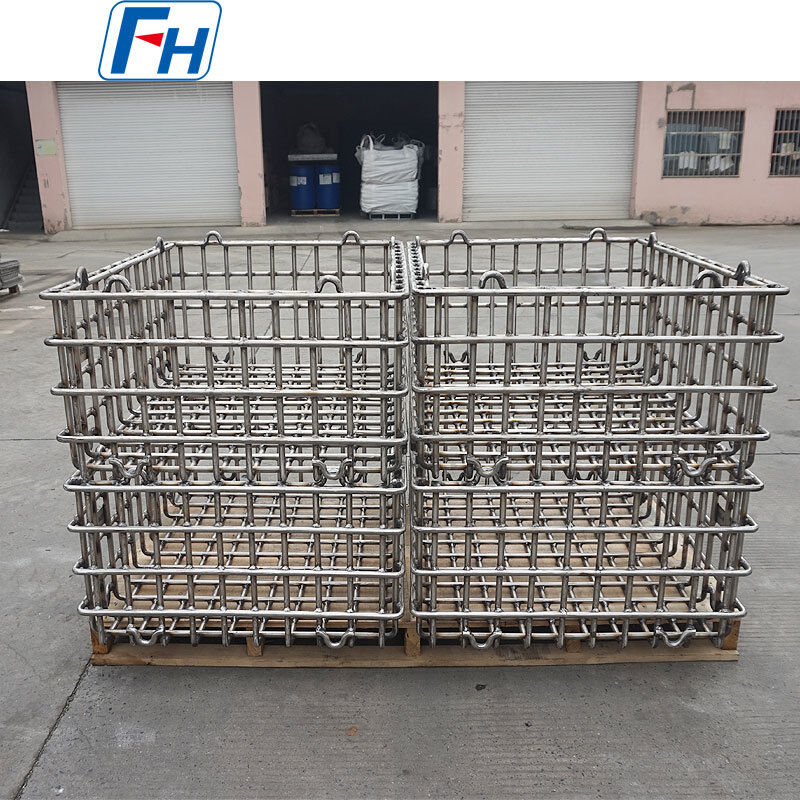

Real Photos of the Welding Heat Treatment Baskets:
FAQ:
Q: How to give inquiry ?
A: Step 1, please give us some details about your furnace,operating temperature,cooling method,loading weight of your furnace and so on;
Step 2, it's better to provide 3D drawings;
Step 3, when we have enough details, we may design the products drawings and quote accordingly;
Q: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q: When will make delivery ? /What is the delivery Time?
A: -Sample Order: 35 days after receipt of the full payment.
-Stock Order: 10 days after receipt of the full payment
-OEM Order: 30 days after receipt of the deposit.
Q: What's your after-sales service?
A: 1 year warranty for all kinds of products;
If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
Q: What's your payment condition?
A: T/T
Payment<=USD10000, 100% in advance. Payment>USD10000, 50% T/T in advance ,balance before shipment.
Q: What is the shipping method?
A: Transported by DHL, UPS, EMS, Fedex,Air freight, sea freight or train freight.
