FH® Alloy manufactures custom U-shaped radiant tube assemblies for industrial furnaces and heat treatment equipment. The assembly can be supplied with the U-shaped tube, insulation blocks, mounting plate, and other installation components according to the customer's furnace design.
The U-shaped configuration provides a long radiant heating path within a relatively compact installation space and is commonly used in furnace systems requiring indirect heating, controlled atmosphere, and stable heat transfer.
All dimensions, materials, connection structures, and mounting arrangements can be customized according to drawings or existing furnace requirements.
Product Overview

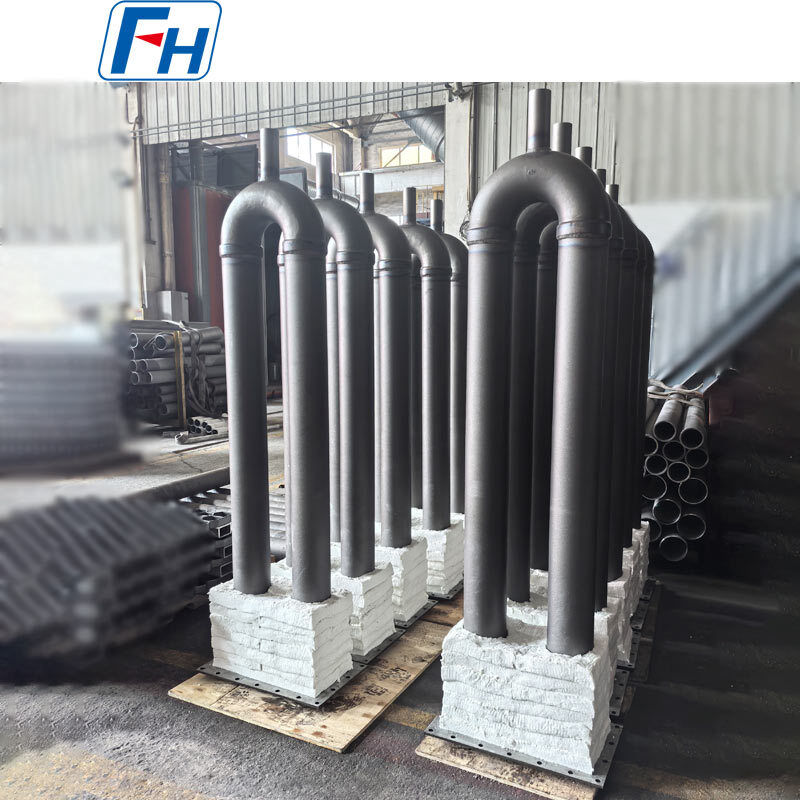

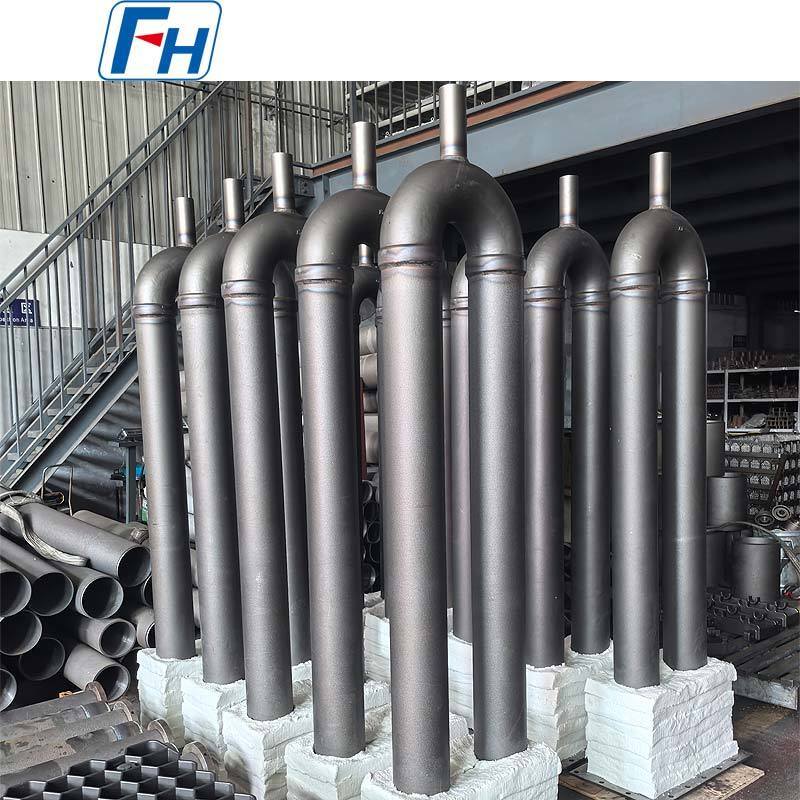

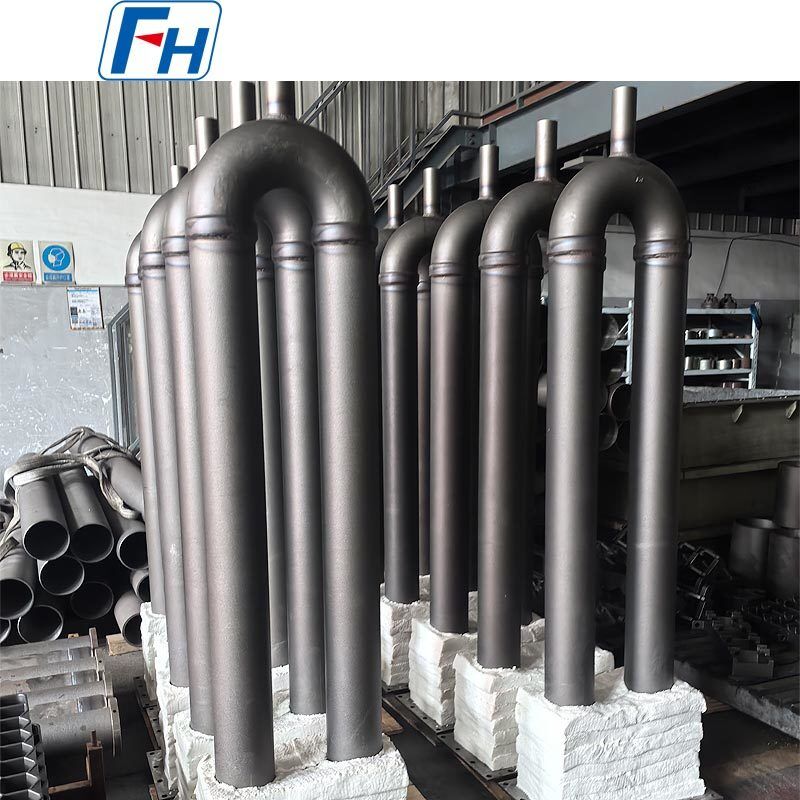

This U-shaped radiant tube consists of two parallel straight tube sections connected by a return bend at the top.
The lower section is integrated with insulation blocks and a mounting base, helping the radiant tube fit securely into the furnace structure while reducing heat loss around the installation area.
Typical customization includes:
FH® Alloy supports OEM and drawing-based manufacturing for new furnace projects and replacement applications.
Typical Specifications
| Item | Specification |
| Product Name | U-Shaped Radiant Tube Assembly |
| Tube Shape | U-Type / U-Bend |
| Material | Heat-Resistant Alloy, Customized |
| Tube Outside Diameter | Customized |
| Wall Thickness | Customized |
| Overall Height | Customized |
| Center Distance | Customized |
| Bend Radius | According to Drawing |
| Insulation Block | Customized |
| Mounting Plate | Customized |
| Manufacturing | Fabrication / Welding / Machining |
| Application | Industrial Furnace / Heat Treatment Furnace |
| Customization | OEM / Drawing-Based |
| Manufacturer | FH® Alloy |
U-Shaped Radiant Tube Dimensions
The dimensions of the U-shaped radiant tube can be customized according to the furnace structure, burner arrangement, installation space, and service requirements.
Typical dimensional parameters include:
Drawing Reference
OD = Outside Diameter
WT = Wall Thickness
C = Center Distance
H = Overall Height
L = Straight Leg Length
R = Bend Radius
All dimensions can be manufactured according to customer drawings.
Material Options
The material of a radiant tube should be selected according to the actual operating conditions rather than temperature alone.
FH® Alloy can provide different heat-resistant materials depending on:
Typical material options can include:
If the material has not yet been determined, customers can provide the operating conditions for material selection support.
Integrated Insulation Block & Mounting Structure
A key feature of this radiant tube assembly is the customized lower mounting system.
The tube can be supplied together with:
The insulation blocks help reduce heat transfer around the furnace opening and support the tube installation according to the furnace structure.
The exact insulation material and mounting design can be customized according to the project requirements.
Indirect Heating Performance
U-shaped radiant tubes are commonly used where the heat source needs to remain separated from the furnace chamber.
Heat generated inside the radiant tube is transferred through the tube wall and radiated toward the furnace load.
This arrangement can provide:
Typical Applications
U-shaped radiant tube assemblies are suitable for:
They are particularly suitable for furnace systems requiring custom radiant heating elements with integrated mounting structures.
Manufacturing Process
Depending on the design, the production process may include:
Material Preparation → Tube Forming → Bend Preparation → Assembly → Welding → Machining → Mounting Plate Fabrication → Insulation Assembly → Dimensional Inspection → Final Inspection
For U-shaped radiant tubes, FH® Alloy pays particular attention to:
These factors directly affect installation accuracy and service performance.
Key Advantages
Custom U-Shaped Design
Manufactured according to customer furnace dimensions and installation requirements.
Complete Assembly Supply
Radiant tubes can be supplied together with insulation blocks and mounting plates.
Multiple Alloy Options
Different heat-resistant alloys are available according to operating conditions.
Replacement Manufacturing
Existing furnace tubes can be reproduced according to drawings, samples, or dimensional information.
OEM Capability
Suitable for furnace builders, heat treatment plants, and industrial equipment manufacturers.
Quality Control
Depending on project requirements, inspection can include:
Special inspection requirements can be confirmed before production.
Why Choose FH® Alloy?
FH® Alloy specializes in customized heat-resistant alloy components for industrial furnaces and heat treatment equipment.
Our product range includes:
We support custom manufacturing according to drawings, samples, dimensions, and actual furnace operating conditions.
Request a Quote
For an accurate quotation, please provide:
Send your drawing or existing radiant tube specifications to FH® Alloy for technical review and quotation.
FAQ
Q1: Can you manufacture the complete U-shaped radiant tube assembly?
Yes. We can supply the radiant tube together with customized insulation blocks, mounting plates, and related installation components.
Q2: Can the center distance and tube height be customized?
Yes. Outside diameter, wall thickness, center distance, overall height, bend radius, and mounting dimensions can all be customized.
Q3: What materials are available?
Depending on the working conditions, options may include 1.4848, 1.4849, 1.4852, 2.4879, heat-resistant stainless steels, high-Ni alloys, and other customer-specified grades.
Q4: Can you manufacture replacement radiant tubes?
Yes. Customers can provide drawings, samples, product photos, or measured dimensions for replacement manufacturing.
Q5: Can the insulation block and base plate also be customized?
Yes. The insulation block size, mounting plate, hole positions, and supporting structure can be customized according to the furnace design.
