Place of Origin:
China
Brand Name:
FH®
Certification:
ISO9001, ISO14001
Model Number:
FH 2074
FH® Pit Furnace Fixtures – Industrial Heat Treatment Solutions for B2B
FH® Pit Furnace Fixtures Overview
FH® pit furnace fixtures are engineered for precision, durability, and high-temperature resistance, designed specifically for industrial heat treatment applications. Our fixtures are compatible with leading global furnace brands, including IPSEN, AICHELIN, SECO/WARWICK, INDUCTOTHERM, IVA SCHMETZ, ECM, Tenova, and more. They are the ideal solution for aerospace, automotive, power generation, and industrial machinery manufacturers seeking reliable, high-performance heat treatment tools.
FH® Heat Treatment Fixtures Key Benefits for Customers
1. Global Furnace Compatibility
FH® fixtures are engineered to fit internationally recognized pit furnace brands, ensuring seamless integration into your existing production lines.
2. Durable and High-Temperature Resistant
Made from premium heat-resistant steel and specialized alloys, FH® fixtures deliver consistent heat treatment performance under extreme conditions.
3. Precision Engineering
Customizable to meet specific furnace specifications and production requirements, helping maximize efficiency and reduce downtime.
4. Long Service Life
Advanced surface treatment and wear-resistant design minimize maintenance costs, delivering long-term value for industrial operations.
5. Versatile Applications
Suitable for annealing, quenching, tempering, and other industrial heat treatment processes
Why Choose FH® for Your Business
Applications
Call to Action
For custom solutions, technical specifications, or project consultation, please contact our sales team directly. FH® provides tailored solutions to meet your production needs and ensure reliable, precise, and efficient heat treatment operations.

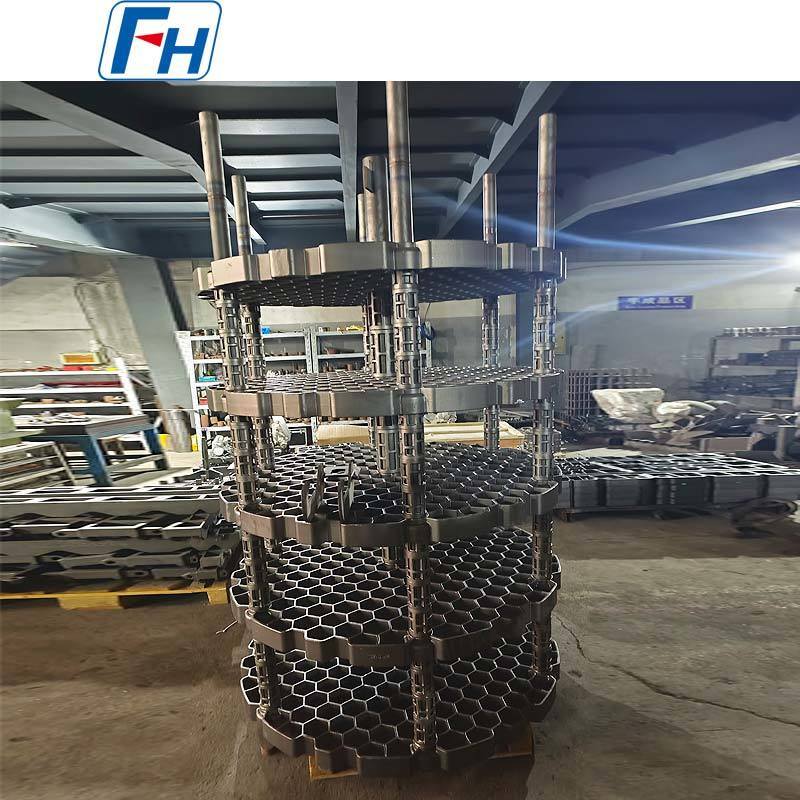

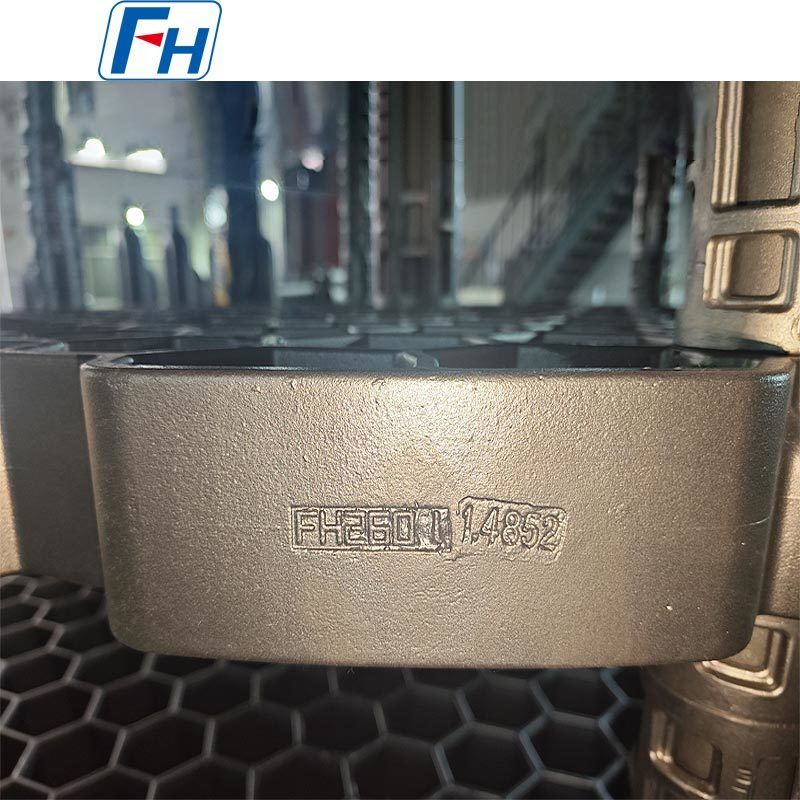

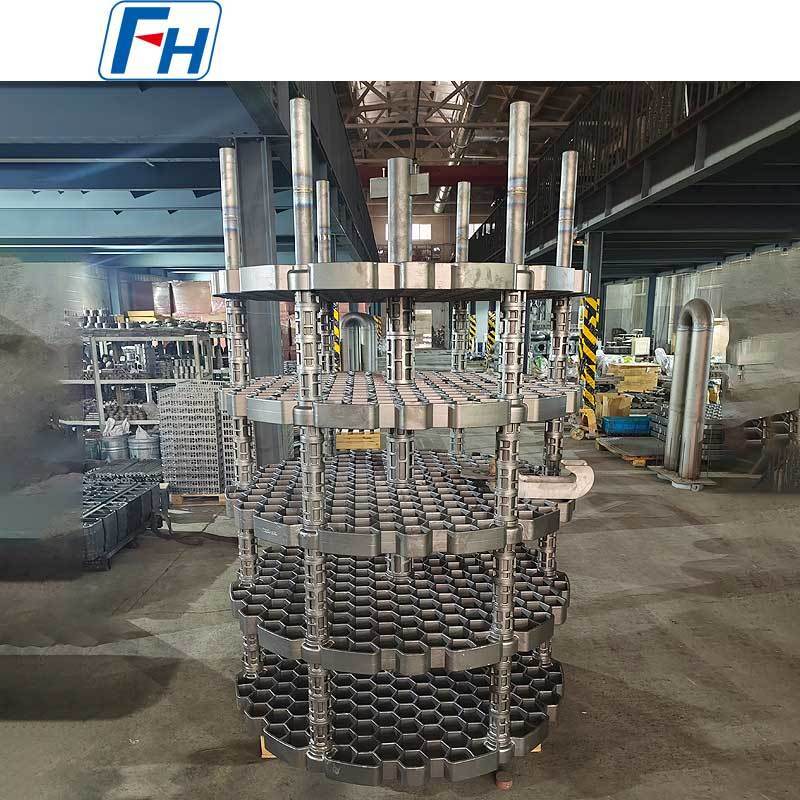

Genuine Photos of FH® Heat Treatment Fixtures
Material Grade Table
| Heat-resistant Steel | |||||||||||||
| / | GB | DIN | ASTM | JIS | Chemical Composition (%) | Maximum Operation Temperature | |||||||
| C | Si | Mn | Cr | Ni | Nb/Cb | Mo | Other | ||||||
| 1 | ZG40Cr27Ni4 | 1.4823 | HD | SCH11 | 0.30 - 0.50 | ≤2.00 | ≤1.00 | 24.00 - 28.00 | 4.00 - 6.00 | - | ≤0.50 | - | 1050℃ |
| 2 | ZG40Cr22Ni10 | 1.4826 | HF | SCH12 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 19.00 - 23.00 | 8.00 - 12.00 | - | ≤0.50 | - | 950℃ |
| 3 | ZG30Cr28Ni10 | - | HE | SCH17 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 8.00 - 11.00 | - | - | - | 1050℃ |
| 4 | ZG40Cr25Ni12 | 1.4837 | HH | SCH13 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 27.00 | 11.00 - 14.00 | - | ≤0.50 | - | 1050℃ |
| 5 | ZG30Cr28Ni16 | - | HI | SCH18 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 14.00 - 18.00 | - | - | - | 1100℃ |
| 6 | ZG40Cr25Ni20Si2 | 1.4848 | HK | SCH21 | 0.30 - 0.50 | ≤1.75 | ≤1.50 | 23.00 - 27.00 | 19.00 - 22.00 | - | ≤0.50 | - | 1100℃ |
| 7 | ZG30Cr20Ni25 | - | HN | SCH19 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 19.00 - 23.00 | 23.00 - 27.00 | - | - | - | 1100℃ |
| 8 | ZG40Cr19Ni39 | 1.4865 | HU | SCH20 | 0.35 - 0.75 | ≤2.50 | ≤2.00 | 17.00 - 21.00 | 37.00 - 41.00 | - | - | - | 1020℃ |
| 9 | ZG40Cr15Ni35 | 1.4806 | HT | SCH15 | 0.35 - 0.70 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1000℃ |
| 10 | ZG40Cr25Ni35Nb | 1.4852 | HPCb | SCH24Nb | 0.30 - 0.50 | ≤2.00 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | 0.80 - 1.80 | ≤0.50 | - | 1100℃ |
| 11 | ZG40Cr19Ni39Nb | 1.4849 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 18.00 - 21.00 | 36.00 - 39.00 | 1.20- 1.80 | ≤0.50 | - | 1100℃ |
| 12 | ZG40Cr24Ni24Nb | 1.4855 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 23.00 - 25.00 | 23.00 - 25.00 | 0.80 - 1.80 | ≤0.50 | - | 1050℃ |
| 13 | ZG40Cr25Ni35 | 1.4857 | HP | SCH24 | 0.35 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1100℃ |
| 14 | ZG1Cr20Ni32Nb | 1.4859 | - | - | 0.06 - 0.15 | 0.50 - 1.50 | ≤2.00 | 19.00 - 21.00 | 31.00 - 33.00 | 0.50 - 1.50 | ≤0.50 | - | 1050℃ |
| 15 | ZG45Cr12Ni60 | - | HW | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 10.00 - 14.00 | 58.00 - 62.00 | - | - | - | 1100℃ |
| 16 | ZG45Cr18Ni66 | - | HX | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 64.00 - 68.00 | - | - | - | 1100℃ |
| 17 | ZG1Cr28Co50 | 2.4778 | - | - | 0.05 - 0.25 | 0.50 - 1.00 | ≤1.50 | 27.00 - 30.00 | ≤1.00 | ≤0.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 18 | ZG30Cr28Co50Nb | 2.4779 | - | - | 0.25 - 0.35 | 0.50 - 1.50 | 0.50 - 1.50 | 27.00 - 29.00 | - | 1.50 - 2.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 19 | ZG40Cr28Ni48W5 | 2.4879 | - | SCH42 | 0.35 - 0.55 | 1.00 - 2.00 | ≤1.50 | 27.00 - 30.00 | 47.00 - 50.00 | - | ≤0.50 | W:4.0 - 5.5 | 1200℃ |
FAQ:
Q1: What are FH® pit furnace fixtures used for?
A: Industrial heat treatment for aerospace, automotive, and machinery components.
Q2: Are FH® fixtures compatible with major furnace brands?
A: Yes. FH® fixtures fit IPSEN, AICHELIN, SECO/WARWICK, INDUCTOTHERM, IVA SCHMETZ, ECM, Tenova, and other global furnace brands.
Q3: What materials are used?
A: High-temperature resistant steel and specialized alloys.
Q4: Can they handle multiple heat treatment processes?
A: Yes—annealing, quenching, tempering, and more.
Q5: How durable are FH® fixtures?
A: Long-lasting with minimal maintenance due to advanced materials and coatings.
Q6: Are they safe at high temperatures?
A: Yes, designed for stability and safety during all heat treatment cycles.
Q7: How to order?
A: FH® fixtures are available exclusively through direct consultation with our sales team. For custom sizes, specifications, or project-based solutions, please contact our team to receive professional guidance and tailored quotes.
