Heat Treatment Mesh Basket | Custom Fine Mesh Furnace Fixture – FH® Alloy
Fine Mesh Heat Treatment Fixture for Small Parts & Precision Components
FH® Alloy, a brand of Wuxi Junteng Fanghu Alloy Technology Co., Ltd., manufactures custom heat treatment mesh baskets and furnace fixtures for industrial high-temperature applications.
This rectangular heat treatment fixture combines a reinforced outer frame with a fine metal mesh loading surface, making it particularly suitable for small components, precision parts, and workpieces that require secure containment during heating, soaking, and cooling.
Each fixture can be customized according to the customer's part size, furnace dimensions, operating temperature, furnace atmosphere, loading weight, and heat treatment process.
[Request a Quote]
[Send Your Drawing]
Designed for Small & Precision Parts
Conventional open-grid furnace trays may not be suitable for small workpieces because parts can fall through large openings or move excessively during handling.
The fine mesh structure of this fixture provides more complete support for small components while maintaining sufficient open area for heat and furnace atmosphere circulation.
Typical advantages include:

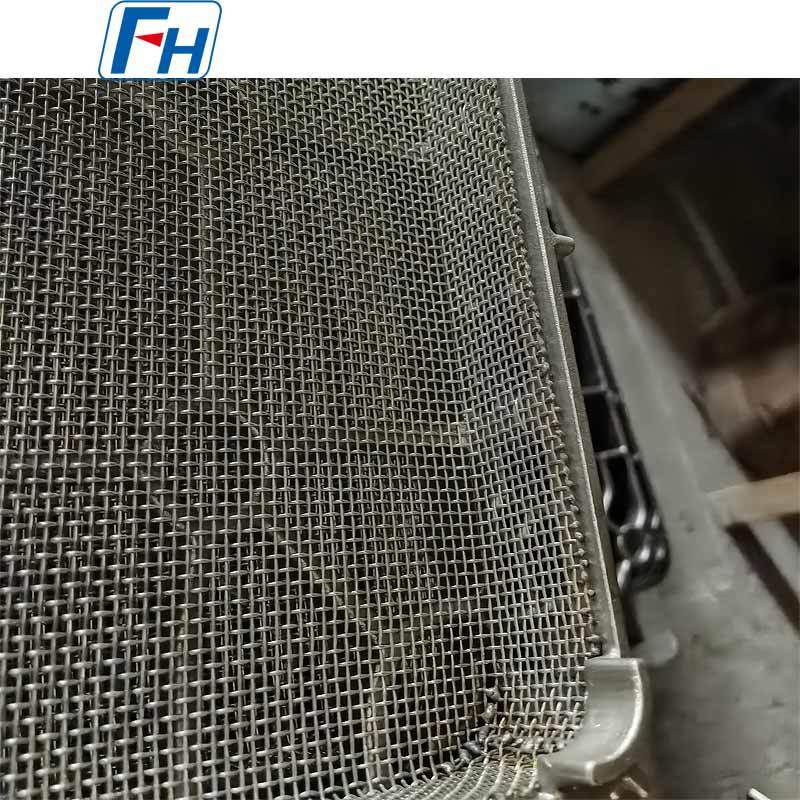

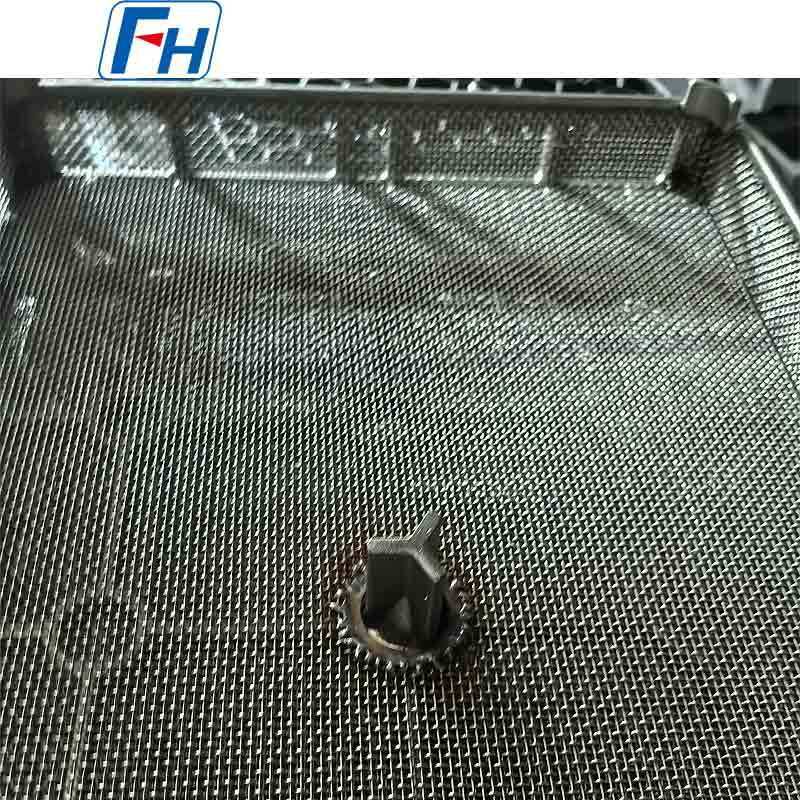

Fine Mesh Structure for Heat Circulation
The metal mesh bottom provides a dense supporting surface without becoming a fully closed plate.
This structure helps balance two important requirements:
Workpiece Retention + Furnace Atmosphere Circulation
Potential benefits include:
Mesh opening size can be customized according to the minimum workpiece dimensions.

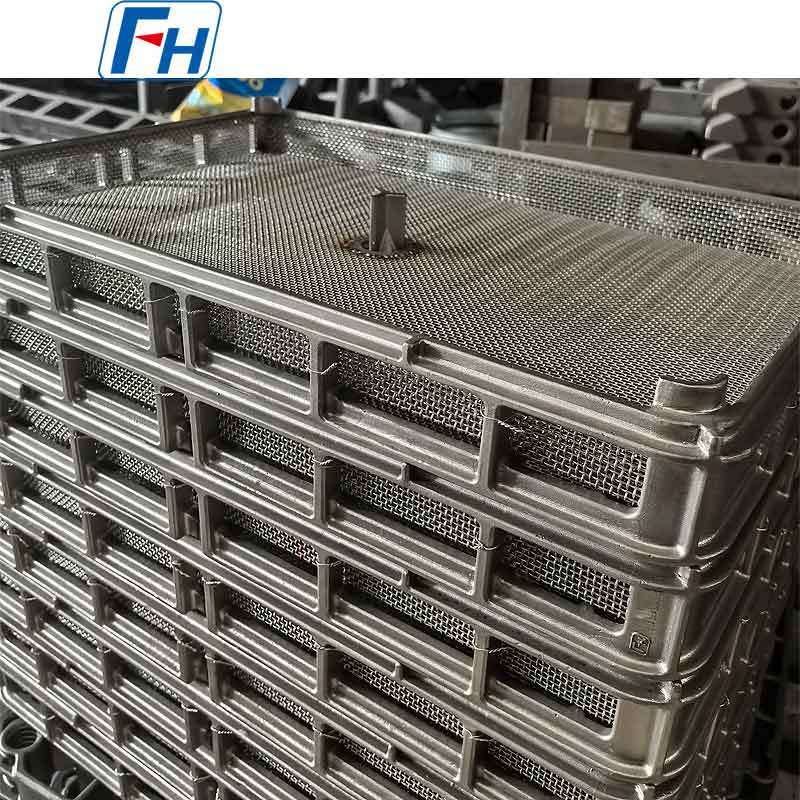

Reinforced Peripheral Frame
The outer frame provides the main structural support for the mesh section.
FH® can customize:
The structure can be optimized according to total loading weight and thermal cycling conditions.

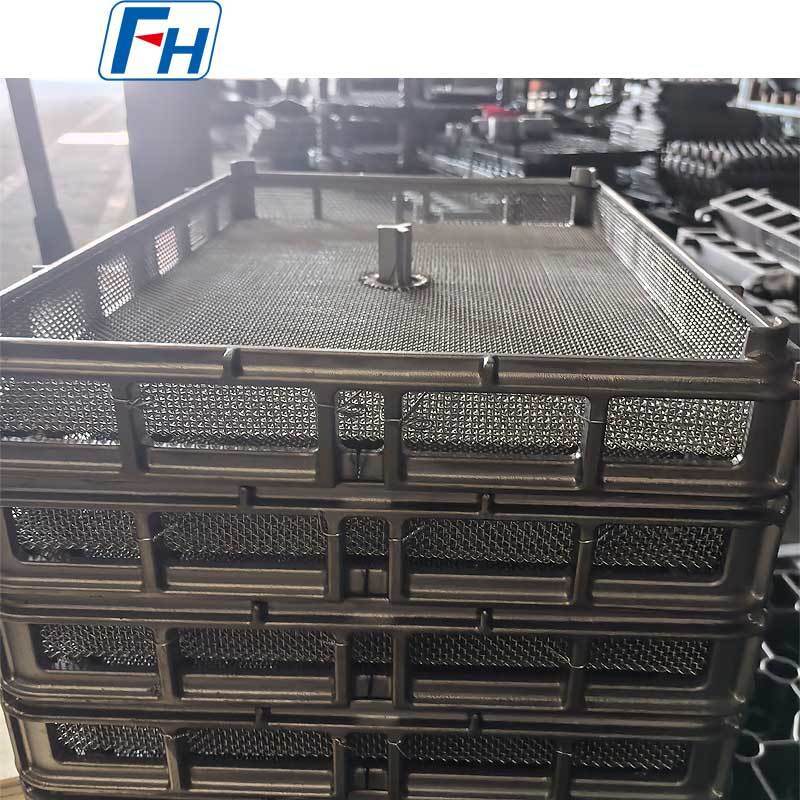

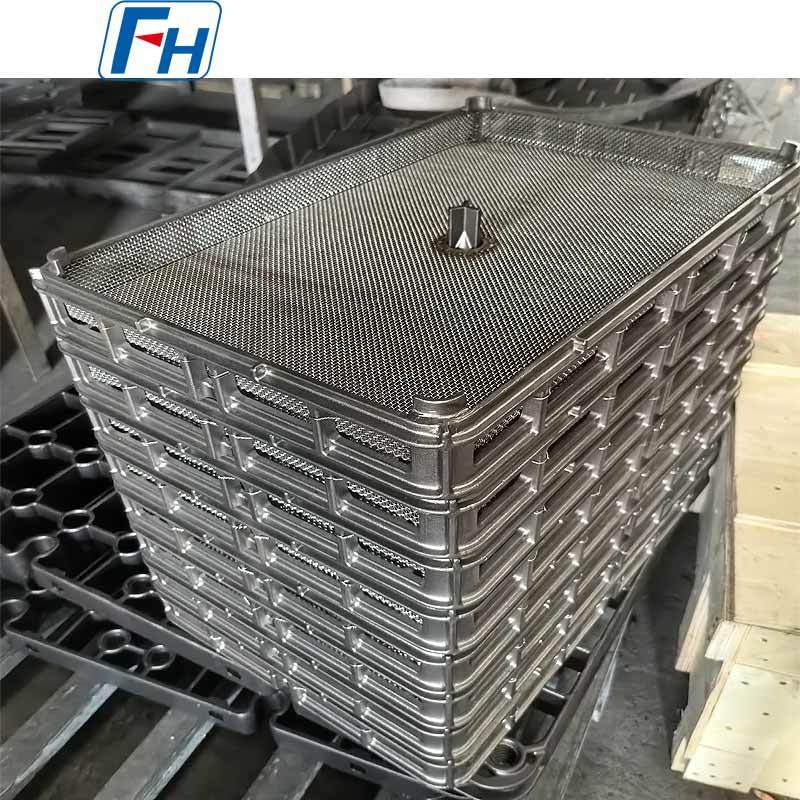

Stackable Heat Treatment Fixture Design
The fixture shown is suitable for stacked storage and can also be developed as part of a multi-layer furnace loading system.
A stackable structure can help:
The stacking height and positioning structure can be customized according to the furnace chamber and workpiece dimensions.
Typical Applications
FH® heat treatment mesh baskets can be used for:
Suitable furnace processes may include:
Heat-Resistant Alloy Options
Material selection depends on actual service conditions.
FH® can manufacture heat treatment fixtures using different heat-resistant materials according to customer requirements, including commonly used grades such as:
1.4848 / 1.4849 / 1.4852 / 310S and other heat-resistant alloys
Selection should consider:
Technical Specifications
| Item | Specification |
| Product Name | Heat Treatment Mesh Basket |
| Alternative Name | Fine Mesh Furnace Basket / Heat Treatment Fixture |
| Brand | FH® Alloy |
| Structure | Reinforced rectangular frame + fine metal mesh |
| Material | Heat-resistant alloy, customized |
| Dimensions | Customized |
| Mesh Opening | Customized |
| Mesh Wire Size | Customized |
| Load Capacity | Designed according to application |
| Operating Temperature | According to material and furnace conditions |
| Application | Industrial heat treatment furnaces |
| Custom Manufacturing | Available |
| OEM | Supported |
Custom Designed Around Your Parts
The correct mesh basket design depends heavily on the size and shape of the treated components.
For technical evaluation, FH® considers:
This ensures that the fixture provides both adequate part retention and sufficient thermal circulation.
Information Required for Quotation
For faster quotation, please provide:
If you do not have a complete fixture drawing, FH® can evaluate your workpiece and furnace conditions and develop a suitable basket structure.
Why Choose FH® Heat Treatment Fixtures?
✔ Custom Mesh Size
Mesh opening and wire dimensions can be matched to the customer's smallest components.
✔ High-Temperature Alloy Selection
Material grade can be selected according to furnace temperature and atmosphere.
✔ Stackable Structure Available
Suitable for efficient multi-layer furnace loading and workshop handling.
✔ OEM Manufacturing
FH® supports manufacturing from customer drawings, samples, or technical requirements.
✔ Complete Fixture Solutions
We manufacture trays, baskets, racks, base trays, pit furnace fixtures, and vacuum furnace fixtures.
Need a Custom Heat Treatment Mesh Basket?
Send us your part dimensions, basket size, operating temperature, load weight, and furnace conditions.
FH® Alloy can manufacture a heat treatment fixture matched to your specific process.
[Request a Quote]
[Send Your Drawing]
[Discuss Your Application]
FAQ
Q1: What is a heat treatment mesh basket used for?
A heat treatment mesh basket is used to hold and contain small or precision components during furnace heating and cooling while allowing heat and furnace atmosphere to circulate around the workpieces.
Q2: Can the mesh size be customized?
Yes. Mesh opening size can be selected according to the dimensions of the smallest components being processed.
Q3: Can the basket dimensions be customized?
Yes. Length, width, height, frame structure, mesh size, and stacking features can all be customized.
Q4: Can this type of basket be stacked?
Yes. FH® can design stackable heat treatment baskets for multi-layer furnace loading.
Q4: What material should be used?
Material depends on operating temperature, furnace atmosphere, heating cycle, cooling method, and load. FH® can recommend a suitable heat-resistant alloy.
Q5: Can FH® manufacture according to our drawing?
Yes. We support OEM manufacturing according to customer drawings, samples, and technical specifications.
