Place of Origin:
China
Brand Name:
FH®
Certification:
ISO9001, ISO14001
Model Number:
FH 2098
Heat Treatment Rack | Custom Furnace Fixture Rack Manufacturer – FH® Alloy
Custom Heat Treatment Racks for High-Temperature Furnace Applications
FH® Alloy, a brand of Wuxi Junteng Fanghu Alloy Technology Co., Ltd., manufactures custom heat treatment racks for demanding industrial furnace applications.

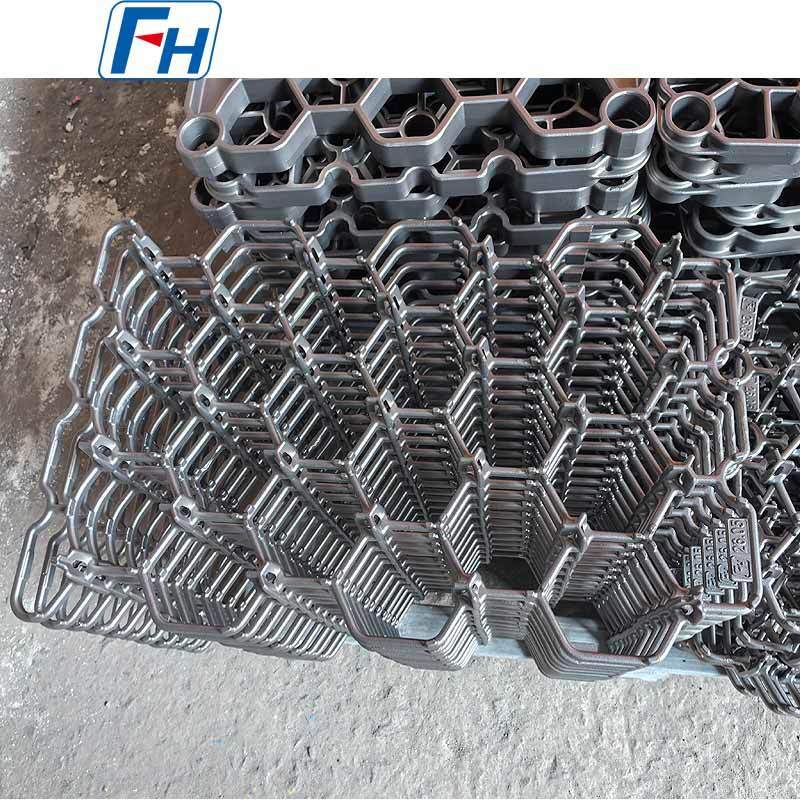

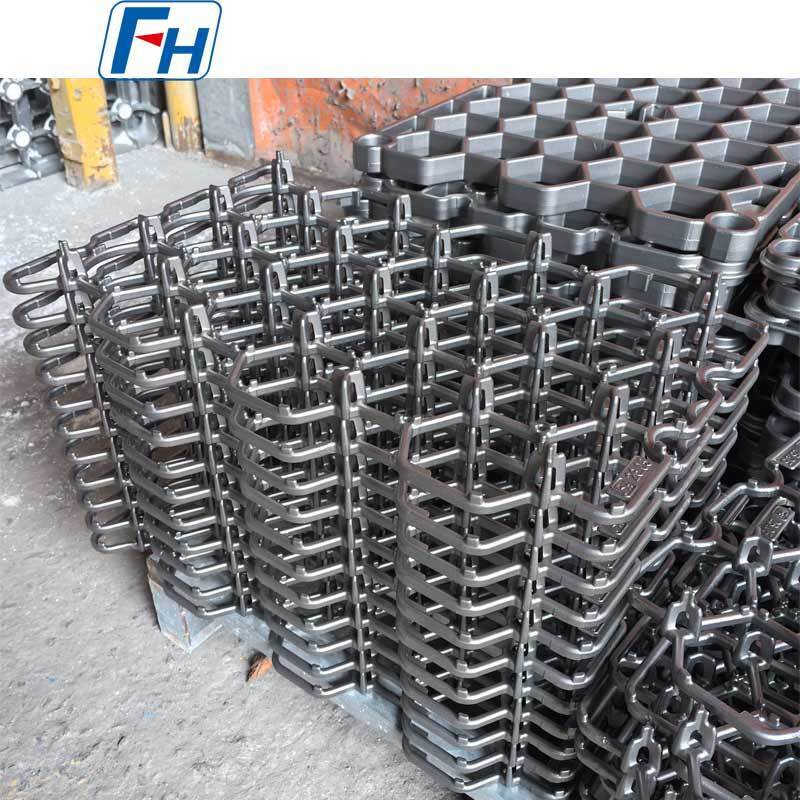

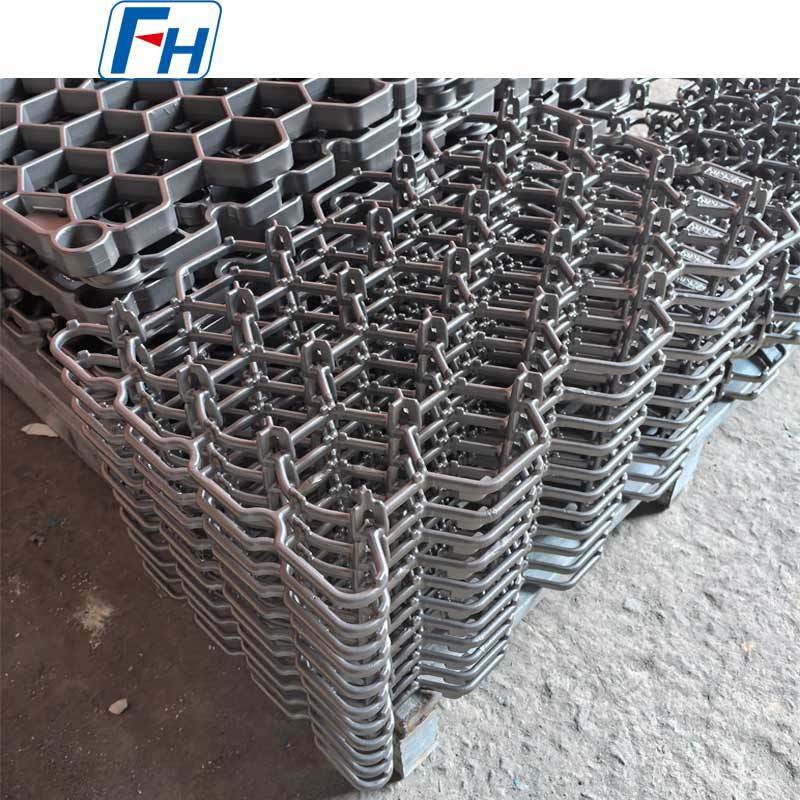

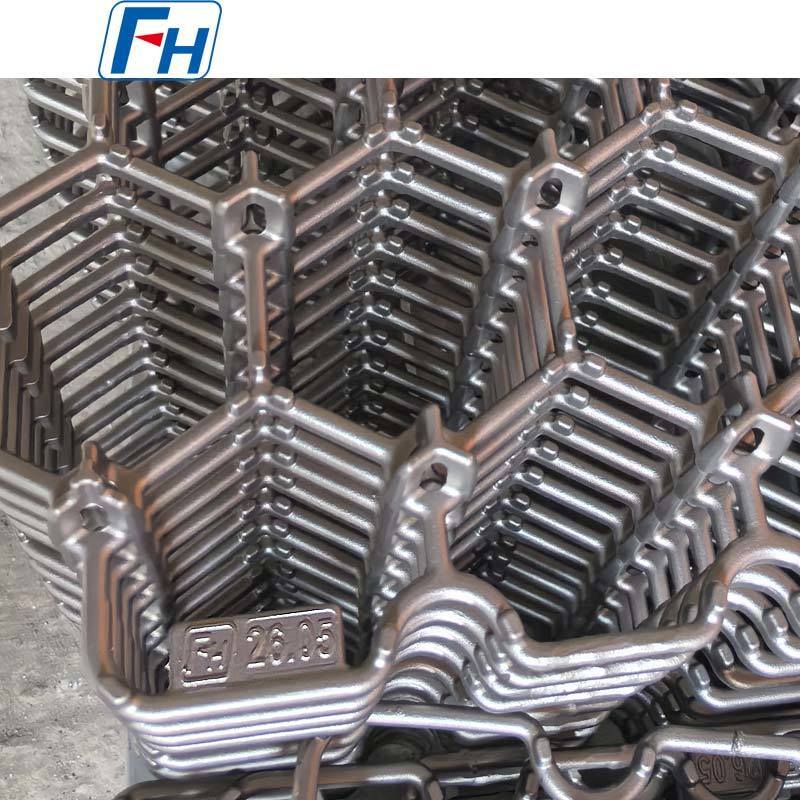

Designed for high-temperature service, our heat treatment racks are used to support, position, and separate workpieces during heat treatment cycles. With an open-frame structure and multi-point locating design, these racks help improve loading efficiency, maintain part spacing, and promote uniform heat circulation inside the furnace.
Whether you need a rack for carburizing, annealing, hardening, normalizing, or other thermal processes, FH® can provide a custom solution based on your furnace conditions and workpiece requirements.
Product Features
Stable Workpiece Positioning
This type of heat treatment rack is designed with multiple locating and supporting points to keep parts in the correct position during the entire heat treatment process. It helps reduce part-to-part contact and supports more consistent processing results.
Open Structure for Better Heat Circulation
The open-frame design allows furnace atmosphere and heat to circulate more freely around the loaded parts, which can improve heating efficiency and temperature uniformity.
Designed for Repeated Thermal Cycling
Heat treatment fixtures are exposed to repeated cycles of heating, soaking, cooling, and reloading. FH® designs each rack to withstand thermal fatigue and high-temperature service conditions.
Stackable / Multi-Layer Loading Capability
This rack structure can be integrated into multi-layer loading systems to improve furnace space utilization and support higher production efficiency.
Custom Structure Available
The support positions, spacing, frame layout, and overall dimensions can all be customized according to your product shape, loading quantity, and furnace process.
Applications
FH® heat treatment racks are suitable for a wide range of industrial heat treatment applications, including:
They can be used in:
Material Options
Material selection depends on the actual working temperature, furnace atmosphere, loading conditions, and required service life.
FH® can manufacture heat treatment racks using common heat-resistant alloys such as:
Our engineering team can recommend a suitable material according to your working conditions.
Technical Specifications
| Item | Specification |
| Product Name | Heat Treatment Rack |
| Alternative Name | Furnace Fixture Rack / Heat Treatment Fixture Rack |
| Brand | FH® Alloy |
| Material | Heat-resistant alloy, customized |
| Structure | Open-frame rack with locating supports |
| Dimensions | Customized |
| Operating Temperature | According to alloy grade and working conditions |
| Load Capacity | Customized |
| Manufacturing Process | Casting / machining / fabrication |
| Application | Industrial heat treatment furnaces |
| OEM / ODM | Available |
Custom Design Service
At FH®, we understand that every heat treatment process is different. That is why we provide custom rack design and manufacturing based on your specific application.
For faster quotation and technical evaluation, customers can provide:
If you do not have a complete drawing, our team can also develop a suitable fixture solution based on your working conditions.
Why Choose FH® Alloy
Custom Engineering Support
We design racks based on actual workpiece geometry and furnace conditions.
Heat-Resistant Alloy Expertise
We specialize in high-temperature alloy products for furnace applications.
Stable Manufacturing Capability
From design to production and inspection, FH® provides complete manufacturing support.
OEM Experience
We support customized production for different industries and export markets.
Complete Furnace Fixture Range
In addition to heat treatment racks, FH® also manufactures:
FAQ
Q1: What is a heat treatment rack used for?
A heat treatment rack is used to support and position workpieces inside industrial furnaces during heating and cooling processes.
Q2: Can the rack structure be customized?
Yes. The rack dimensions, locating positions, frame layout, and support structure can all be customized.
Q3: What material is suitable for a heat treatment rack?
The material depends on furnace temperature, atmosphere, load, and service conditions. FH® can recommend the right alloy grade for your application.
Q4: Can FH® manufacture according to our drawing?
Yes. We support OEM production based on customer drawings, samples, or technical requirements.
Q5: Can you help if we only provide workpiece information but no fixture drawing?
Yes. Our team can evaluate your workpiece and furnace conditions and propose a suitable fixture design.
