Place of Origin:
China
Brand Name:
FH®
Certification:
ISO9001, ISO14001
Model Number:
FH 2096
Premium 1.4848 Alloy Heat Treatment Fixture for Industrial Furnaces
FH® (Wuxi Junteng Fanghu Alloy Technology Co., Ltd.) manufactures high-performance 1.4848 heat treatment fixtures designed for extreme temperature furnace environments, including carburizing, annealing, hardening, and normalizing processes.
This round honeycomb-style fixture shown above is engineered for high load stability, excellent thermal shock resistance, and long service life in continuous industrial operation.
The FH® 1.4848 heat treatment fixture is designed for heavy-duty furnace loading applications. Its reinforced structural geometry ensures stable support for complex metal parts during high-temperature processing.
✔ Stable circular structure for uniform load distribution
✔ Honeycomb reinforcement for high strength-to-weight ratio
✔ Excellent resistance to thermal fatigue and oxidation
✔ Suitable for continuous and batch furnace systems
✔ Long service life under cyclic heating conditions
Material: 1.4848 Heat Resistant Alloy
1.4848 is a high-performance heat-resistant steel designed for:
It is widely used in furnace components operating under 800–1100°C environments depending on application conditions.
Key Features of FH® 1.4848 Heat Treatment Fixtures
✔ High Temperature Stability
Maintains structural integrity in continuous furnace cycles.
✔ Anti-Deformation Design
Engineered honeycomb structure reduces thermal stress deformation.
✔ Optimized Furnace Loading
Improves loading density and furnace efficiency.
✔ Extended Service Life
Reduces replacement frequency and maintenance cost.
✔ Custom Manufacturing Available
Designed according to furnace size, load weight, and process requirements.
Applications
FH® 1.4848 heat treatment fixtures are widely used in:
Why FH® Heat Treatment Fixtures?
Wuxi Junteng Fanghu Alloy Technology Co., Ltd. (FH®) is a professional manufacturer specializing in furnace fixtures and high-temperature alloy components.
We provide:
Material Grade Table
| Heat-resistant Steel | |||||||||||||
| / | GB | DIN | ASTM | JIS | Chemical Composition (%) | Maximum Operation Temperature | |||||||
| C | Si | Mn | Cr | Ni | Nb/Cb | Mo | Other | ||||||
| 1 | ZG40Cr27Ni4 | 1.4823 | HD | SCH11 | 0.30 - 0.50 | ≤2.00 | ≤1.00 | 24.00 - 28.00 | 4.00 - 6.00 | - | ≤0.50 | - | 1050℃ |
| 2 | ZG40Cr22Ni10 | 1.4826 | HF | SCH12 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 19.00 - 23.00 | 8.00 - 12.00 | - | ≤0.50 | - | 950℃ |
| 3 | ZG30Cr28Ni10 | - | HE | SCH17 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 8.00 - 11.00 | - | - | - | 1050℃ |
| 4 | ZG40Cr25Ni12 | 1.4837 | HH | SCH13 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 27.00 | 11.00 - 14.00 | - | ≤0.50 | - | 1050℃ |
| 5 | ZG30Cr28Ni16 | - | HI | SCH18 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 14.00 - 18.00 | - | - | - | 1100℃ |
| 6 | ZG40Cr25Ni20Si2 | 1.4848 | HK | SCH21 | 0.30 - 0.50 | ≤1.75 | ≤1.50 | 23.00 - 27.00 | 19.00 - 22.00 | - | ≤0.50 | - | 1100℃ |
| 7 | ZG30Cr20Ni25 | - | HN | SCH19 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 19.00 - 23.00 | 23.00 - 27.00 | - | - | - | 1100℃ |
| 8 | ZG40Cr19Ni39 | 1.4865 | HU | SCH20 | 0.35 - 0.75 | ≤2.50 | ≤2.00 | 17.00 - 21.00 | 37.00 - 41.00 | - | - | - | 1020℃ |
| 9 | ZG40Cr15Ni35 | 1.4806 | HT | SCH15 | 0.35 - 0.70 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1000℃ |
| 10 | ZG40Cr25Ni35Nb | 1.4852 | HPCb | SCH24Nb | 0.30 - 0.50 | ≤2.00 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | 0.80 - 1.80 | ≤0.50 | - | 1100℃ |
| 11 | ZG40Cr19Ni39Nb | 1.4849 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 18.00 - 21.00 | 36.00 - 39.00 | 1.20- 1.80 | ≤0.50 | - | 1100℃ |
| 12 | ZG40Cr24Ni24Nb | 1.4855 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 23.00 - 25.00 | 23.00 - 25.00 | 0.80 - 1.80 | ≤0.50 | - | 1050℃ |
| 13 | ZG40Cr25Ni35 | 1.4857 | HP | SCH24 | 0.35 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1100℃ |
| 14 | ZG1Cr20Ni32Nb | 1.4859 | - | - | 0.06 - 0.15 | 0.50 - 1.50 | ≤2.00 | 19.00 - 21.00 | 31.00 - 33.00 | 0.50 - 1.50 | ≤0.50 | - | 1050℃ |
| 15 | ZG45Cr12Ni60 | - | HW | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 10.00 - 14.00 | 58.00 - 62.00 | - | - | - | 1100℃ |
| 16 | ZG45Cr18Ni66 | - | HX | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 64.00 - 68.00 | - | - | - | 1100℃ |
| 17 | ZG1Cr28Co50 | 2.4778 | - | - | 0.05 - 0.25 | 0.50 - 1.00 | ≤1.50 | 27.00 - 30.00 | ≤1.00 | ≤0.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 18 | ZG30Cr28Co50Nb | 2.4779 | - | - | 0.25 - 0.35 | 0.50 - 1.50 | 0.50 - 1.50 | 27.00 - 29.00 | - | 1.50 - 2.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 19 | ZG40Cr28Ni48W5 | 2.4879 | - | SCH42 | 0.35 - 0.55 | 1.00 - 2.00 | ≤1.50 | 27.00 - 30.00 | 47.00 - 50.00 | - | ≤0.50 | W:4.0 - 5.5 | 1200℃ |

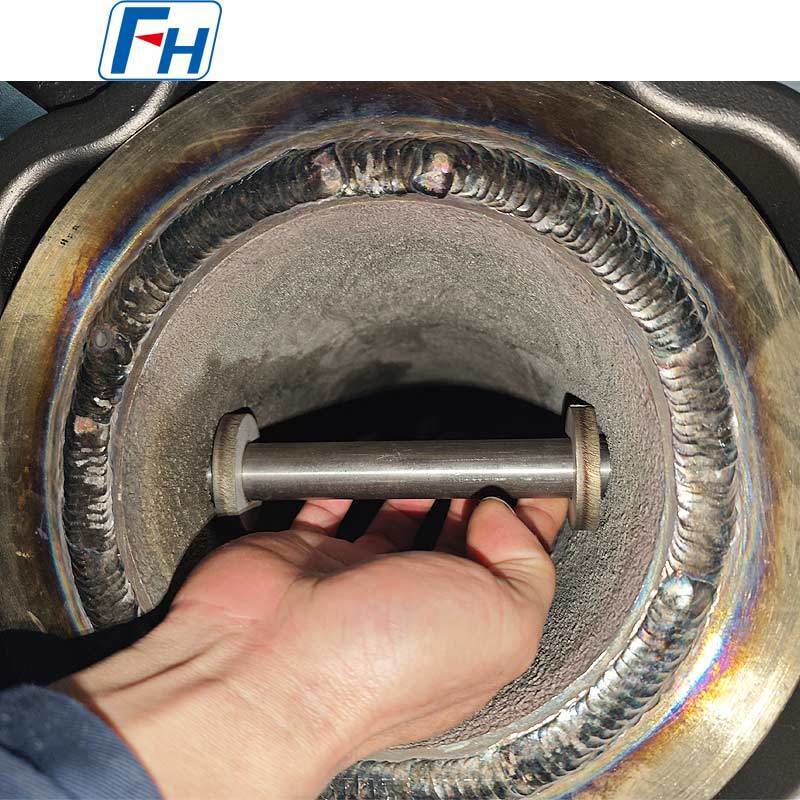

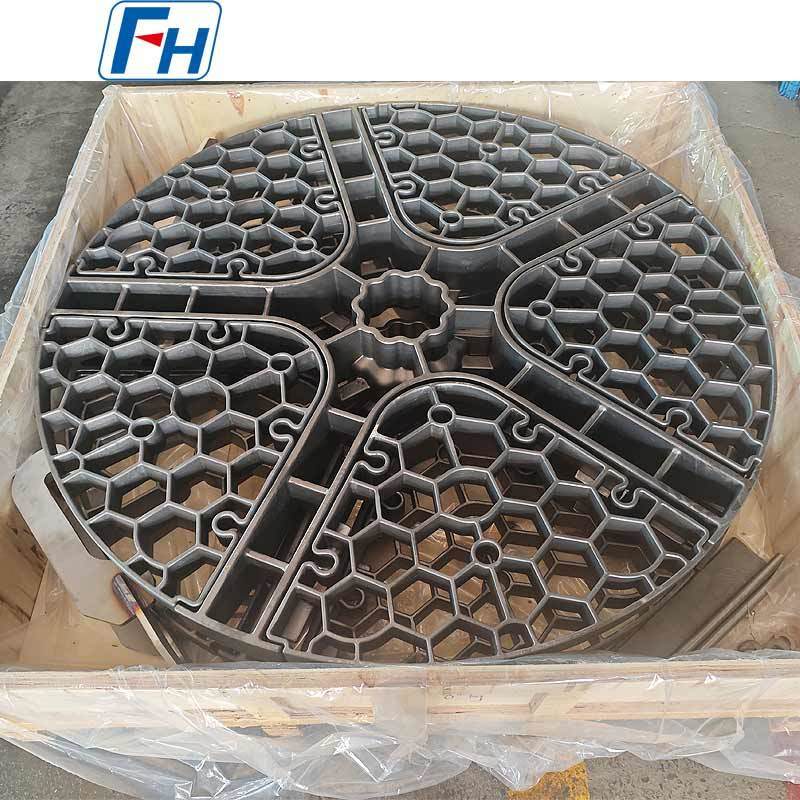

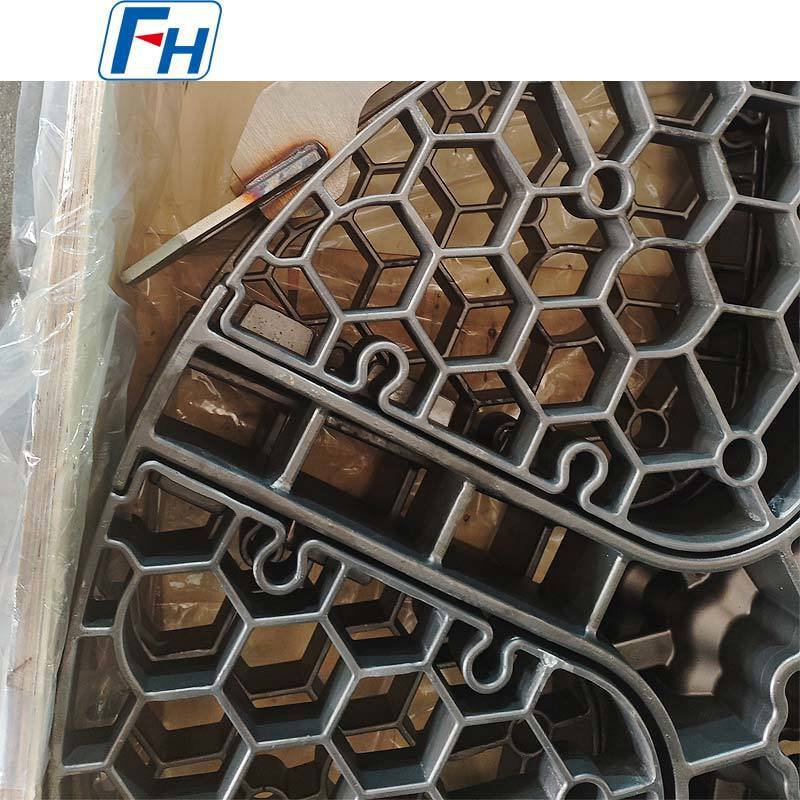

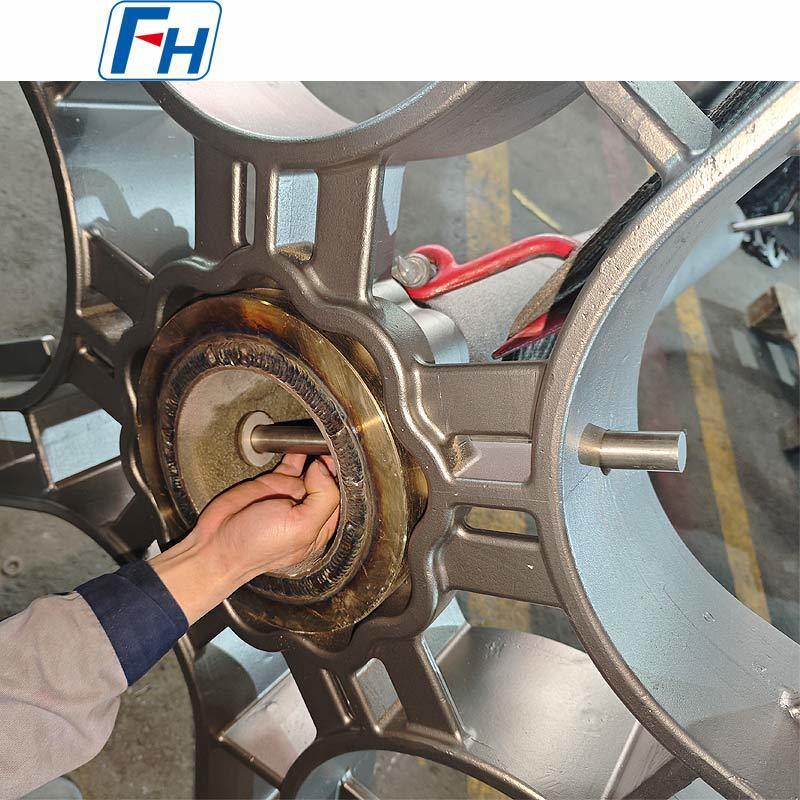

Genuine Photos of FH® Heat Treatment Fixtures
FAQ
Q1: What is 1.4848 used for in heat treatment fixtures?
A: 1.4848 is used for furnace components requiring high-temperature strength, oxidation resistance, and long service life.
Q2: Can this fixture be customized?
A: Yes. FH® provides full custom design based on furnace type, load weight, and product geometry.
Q3: What industries use this product?
A: Automotive, aerospace, tooling, metallurgy, and general industrial heat treatment industries.
Q4: What is the advantage of this honeycomb design?
A: It improves strength while reducing weight and ensures even heat distribution and deformation resistance.
