Custom Flange-Mounted Radiant Tubes | OEM Manufacturing | FH® Alloy
FH® Alloy manufactures I-shaped radiant tubes for industrial furnaces and heat treatment equipment, providing customized solutions for indirect heating systems used in various thermal processing applications.
Compared with bent or U-shaped designs, the I-shaped radiant tube features a straight-through structure that is suitable for furnace systems requiring simple installation, convenient maintenance, and efficient radiant heat transfer.
The product can be customized according to customer drawings, furnace dimensions, operating conditions, flange requirements, and material specifications.
Product Overview

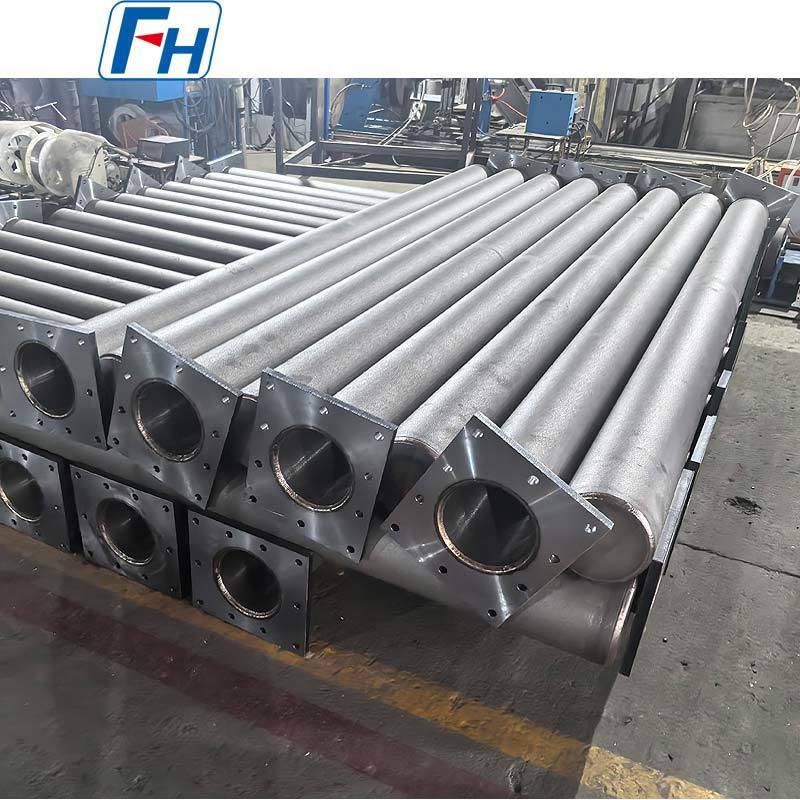

The I-shaped radiant tube is a straight radiant heating tube commonly used in industrial furnace systems where indirect heating is required.
Its straight cylindrical structure, together with customized flange connections, makes it suitable for furnace layouts that require:
FH® Alloy can manufacture I-shaped radiant tubes with different diameters, lengths, wall thicknesses, flange dimensions, and alloy materials according to actual service requirements.
Typical Specifications
| Item | Specification |
| Product Name | I-Shaped Radiant Tube |
| Product Type | Straight Through Radiant Tube |
| Structure | I-Type / Straight Type |
| Material | Heat-Resistant Stainless Steel / High-Temperature Alloy / Nickel-Based Alloy |
| Tube Outside Diameter | Customized |
| Wall Thickness | Customized |
| Overall Length | Customized |
| Flange Type | Square Flange / Custom Flange |
| Connection Design | According to Drawing |
| Manufacturing | Fabrication / Welding / Machining |
| Application | Industrial Furnace / Heat Treatment Furnace |
| Customization | OEM / Drawing-Based Manufacturing |
| Manufacturer | FH® Alloy |
I-Shaped Radiant Tube Dimensions
The dimensions of the I-shaped radiant tube can be customized according to the furnace structure, installation position, burner connection, and operating requirements.
Typical dimensional parameters include:
Drawing Reference
OD = Outside Diameter
WT = Wall Thickness
L = Overall Length
FD = Flange Dimension
FT = Flange Thickness
All dimensions can be manufactured according to customer drawings or samples.
Material Options
Material selection directly affects the performance and service life of a radiant tube.
FH® Alloy can provide different materials according to:
Typical material options include:
If the material has not yet been determined, we can recommend a suitable grade based on the actual working conditions.
Designed for Indirect Heating
I-shaped radiant tubes are widely used in furnace systems where the heat source must be separated from the furnace chamber.
During operation, heat is generated inside the tube or along the tube system and transferred through the tube wall into the furnace chamber by radiation.
This design helps provide:
Typical Applications
I-shaped radiant tubes are suitable for:
They are especially suitable for furnace systems requiring straight radiant tube structures with flange-mounted installation.
Manufacturing & Fabrication
FH® Alloy manufactures I-shaped radiant tubes according to customer drawings and technical requirements.
Depending on the design, the process may include:
Material Preparation → Tube Forming / Casting → Machining → Flange Fabrication → Welding → Assembly → Dimensional Inspection → Surface Cleaning → Final Inspection
During manufacturing, attention is given to:
These factors are important for both installation accuracy and service performance.
Key Features
Straight I-Type Structure
Simple and practical for furnace systems requiring straight radiant tube installation.
Custom Flange Design

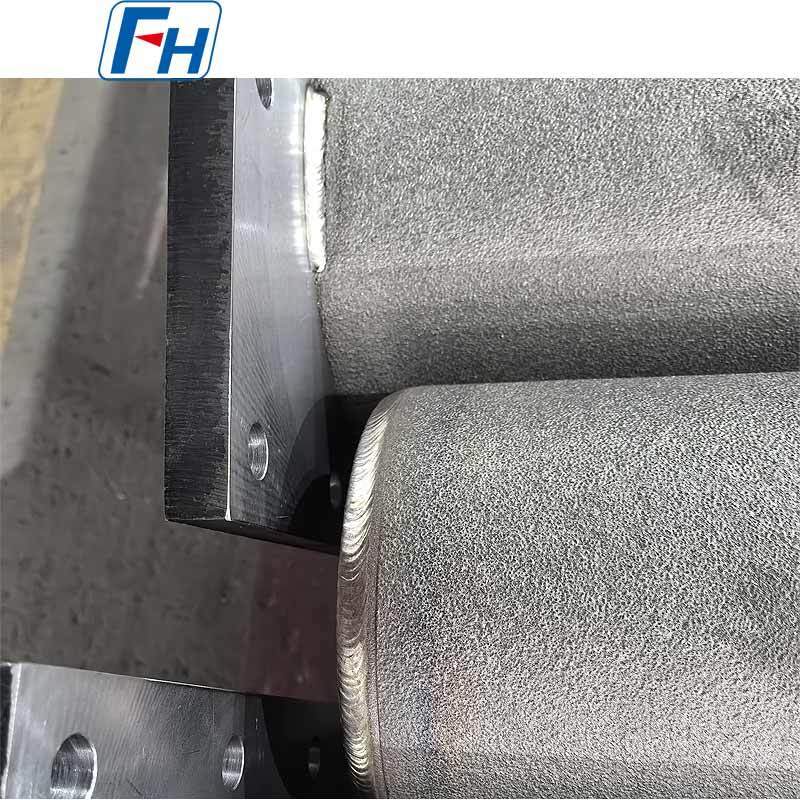

Flange dimensions, mounting holes, and connection structures can be produced according to drawings.
Flexible Material Selection
Multiple heat-resistant alloy options available for different furnace conditions.
Replacement & OEM Capability
Suitable for new projects and replacement of existing furnace radiant tubes.
Stable Fabrication Quality
Manufactured with attention to tube alignment, flange fit, and structural integrity.
Quality Inspection
Depending on the project requirements, inspection can include:
Additional inspection requirements can be confirmed before production.
Why Choose FH® Alloy?
FH® Alloy specializes in custom heat-resistant alloy components for industrial furnaces and heat treatment equipment.
Our product range includes:
We support OEM production, drawing-based manufacturing, replacement manufacturing, and customized material solutions for international customers.
Request a Quote
If you need a custom I-shaped radiant tube for your furnace project, please send us:
Send your drawing to FH® Alloy for technical review and quotation.
FAQ
Q1: Can you manufacture I-shaped radiant tubes according to our drawing?
Yes. FH® Alloy supports custom manufacturing according to customer drawings, samples, and furnace dimensions.
Q2: Can the flange structure be customized?
Yes. Flange size, thickness, hole position, and connection details can all be customized.
Q3: What materials are available?
We can provide 1.4848, 1.4849, 1.4852, 2.4879, heat-resistant stainless steels, high-Ni alloys, and other customer-specified grades.
Q4: Can you produce replacement radiant tubes?
Yes. Existing radiant tubes can be reproduced based on drawings, product photos, samples, or dimensional information.
Q5: How do we choose the right material?
Please provide the furnace temperature, atmosphere, heating method, and service conditions. FH® Alloy can recommend a suitable material accordingly.
