1.4848 Furnace Rolls – Ø140 × Ø122 × 4000 mm Heat-Resistant Roller for Industrial Furnaces

FH® Alloy manufactures customized 1.4848 furnace rolls for roller hearth furnaces, continuous heat treatment lines, annealing furnaces, normalizing furnaces, and other high-temperature conveying systems.

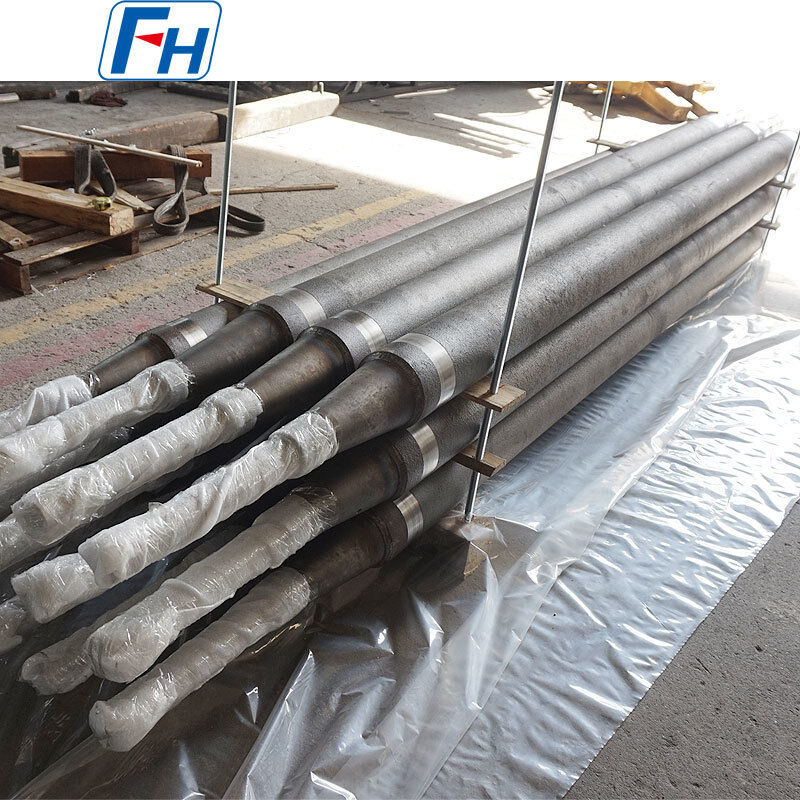

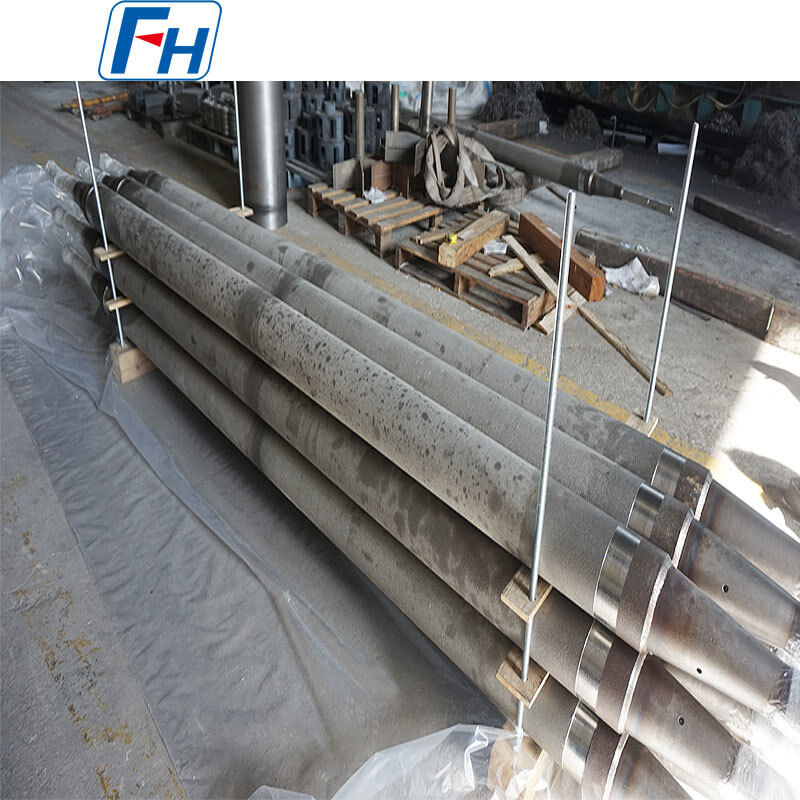

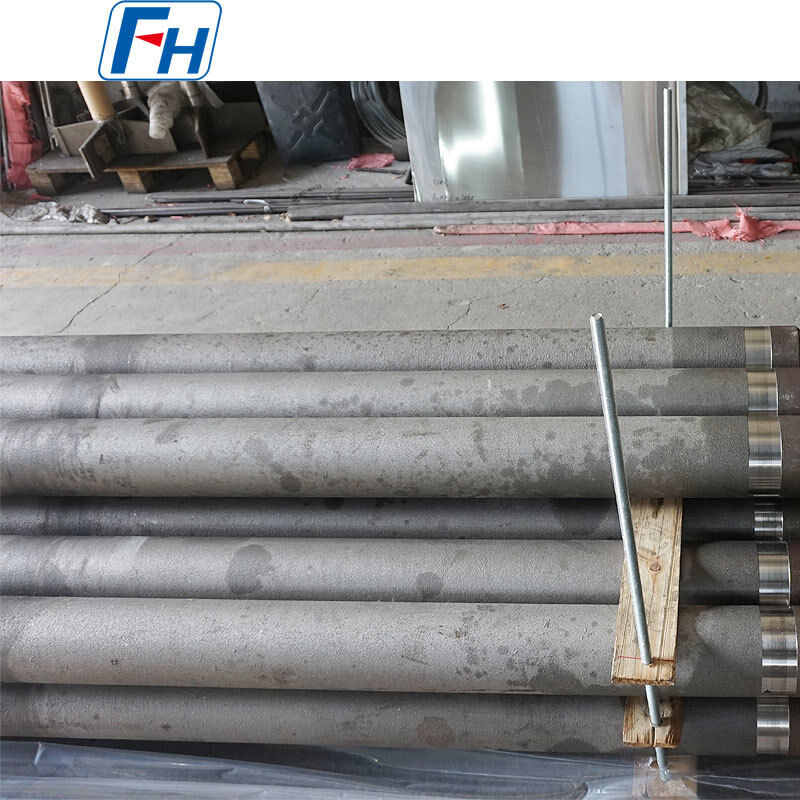

This furnace roll is manufactured with a nominal size of Ø140 × Ø122 × 4000 mm, referring to an outer diameter of 140 mm, an inner diameter of 122 mm, and an overall roller-body length of 4000 mm, subject to final drawing confirmation.

The long hollow roller body is designed to support and transport metal products through high-temperature furnace zones while maintaining reliable rotation, dimensional stability, and resistance to thermal deformation.

🔥 Product Overview
Furnace rolls operate continuously inside industrial furnaces, where they are exposed to high temperatures, mechanical loading, repeated thermal cycling, oxidation, surface scale, and furnace-atmosphere corrosion.

The 1.4848 furnace roll supplied by FH® Alloy is designed for applications requiring:

• High-temperature oxidation resistance
• Stable conveying performance
• Resistance to thermal cycling
• Controlled straightness over a long roller body
• Reliable connection between the roller tube and shafts
• Customized shaft and drive-end machining
• Long-term operation in continuous furnace lines

The hollow roller structure helps reduce overall weight and thermal mass while providing the required load-bearing capacity for the specified furnace application.

⚙️Main Product Specifications

All dimensions, tolerances, shaft structures, and connection details are manufactured according to approved customer drawings.

🧱 1.4848 Heat-resistant Steel Material

📐 Long Hollow Roller Design
The Ø140 × Ø122 × 4000 mm furnace roll has a nominal wall thickness of approximately 9 mm.

This hollow structure is suitable for long furnace rollers where the design must balance:

• Mechanical strength
• Roller-body weight
• Thermal expansion
• Rotational stability
• Heat absorption
• Shaft loading
• Manufacturing cost

For a roller body with a length of 4000 mm, straightness, concentricity, wall-thickness consistency, and shaft alignment are particularly important.

FH® Alloy evaluates the roller according to the actual load and operating conditions to reduce the risk of:

• High-temperature bending
• Excessive radial runout
• Uneven rotation
• Shaft misalignment
• Weld cracking
• Premature roller deformation

🏭 Typical Applications
This 1.4848 furnace roll can be used in a wide range of industrial thermal-processing equipment, including:

• Roller hearth furnaces
• Continuous annealing furnaces
• Normalizing furnaces
• Quenching and tempering lines
• Steel plate heat treatment furnaces
• Stainless steel annealing lines
• Tube and pipe heat treatment furnaces
• Forging heat treatment lines
• Casting heat treatment furnaces
• Continuous industrial heating systems
• High-temperature material-conveying equipment

Typical conveyed products include:

• Steel plates
• Metal sheets
• Pipes and tubes
• Bars and profiles
• Forgings
• Castings
• Mechanical components
• Heat-treated metal assemblies

🌡️ Operating Conditions to Consider
The service life of a furnace roll is influenced by more than the alloy grade.

Before manufacturing, FH® Alloy recommends evaluating the following operating parameters:

• Maximum furnace temperature
• Normal operating temperature
• Furnace atmosphere
• Workpiece weight
• Roller spacing
• Rotational speed
• Continuous or intermittent operation
• Heating and cooling frequency
• External shaft temperature
• Bearing arrangement
• Cooling method
• Scale buildup on the roller surface
• Required service life

For long rollers, the combination of operating temperature, span length, and workpiece load is especially important.
An unsuitable wall thickness or shaft structure may result in bending even when the alloy itself has adequate heat resistance.

🔍 Quality Inspection
Inspection can be arranged according to the application, drawing, and purchase-order requirements.

Available inspection items include:
Material Inspection

• Chemical composition analysis
• Material certificate
• Heat-number traceability
• Alloy-grade verification

Dimensional Inspection

• Outer and inner diameter measurement
• Length measurement
• Shaft and bearing-seat inspection
• Keyway and groove inspection
• Straightness measurement
• Runout and concentricity inspection

Welding Inspection

• Visual weld inspection
• Dye penetrant testing
• Ultrasonic testing when applicable
• Weld-dimension inspection
• Joint-position verification

Final Inspection

• Surface-condition inspection
• Drawing compliance check
• Quantity verification
• Packaging inspection
• Final documentation review

Third-party inspection can be coordinated when specified before order confirmation.

✅ Product Advantages
The FH® Alloy 1.4848 furnace roll provides the following advantages:

• Heat-resistant alloy construction
• Long hollow roller-body design
• Customized shaft configurations
• Controlled dimensional accuracy
• Good resistance to thermal cycling
• Suitable for continuous furnace lines
• OEM manufacturing based on drawings
• Replacement production based on samples
• Optional material and inspection reports
• Export-standard packaging

The roller can be manufactured as a direct replacement for an existing furnace component or as part of a new furnace project.

🏆 Why Choose FH® Alloy?
FH® Alloy is a manufacturer of customized heat-resistant and corrosion-resistant alloy components for industrial furnaces and heat treatment equipment.

Our capabilities include:

• Heat-resistant alloy casting
• Centrifugal and static casting
• Hollow furnace-roll production
• Precision shaft machining
• Welding and assembly
• Heat treatment
• Dimensional correction
• Surface finishing
• Nondestructive testing coordination
• Export packing and international shipment support

We manufacture furnace rollers according to customer drawings and actual service conditions rather than limiting customers to standard sizes.

📦 Export Packaging
Long furnace rolls require reinforced packaging to prevent bending, impact damage, moisture exposure, and shaft-end damage during transportation.

Typical packaging includes:

• Protective wrapping
• Rust-preventive protection for machined shafts
• Plastic film or moisture barrier
• Shaft-end caps
• Wooden or steel support blocks
• Reinforced wooden cases
• Internal fixing structures
• Clear lifting and handling marks
• Export shipping labels

The roller body and shafts are supported at appropriate positions to reduce transportation stress.

📩 Request a Quote
Looking for a customized furnace rolls ?
Send FH® Alloy your drawings, operating temperature, furnace atmosphere, workpiece load, shaft dimensions, and required quantity.
Our team will review the technical requirements and provide a customized manufacturing proposal.
Contact FH® Alloy for drawing review, technical evaluation, and quotation.

❓ FAQ
Q1: Can the shaft dimensions be customized?

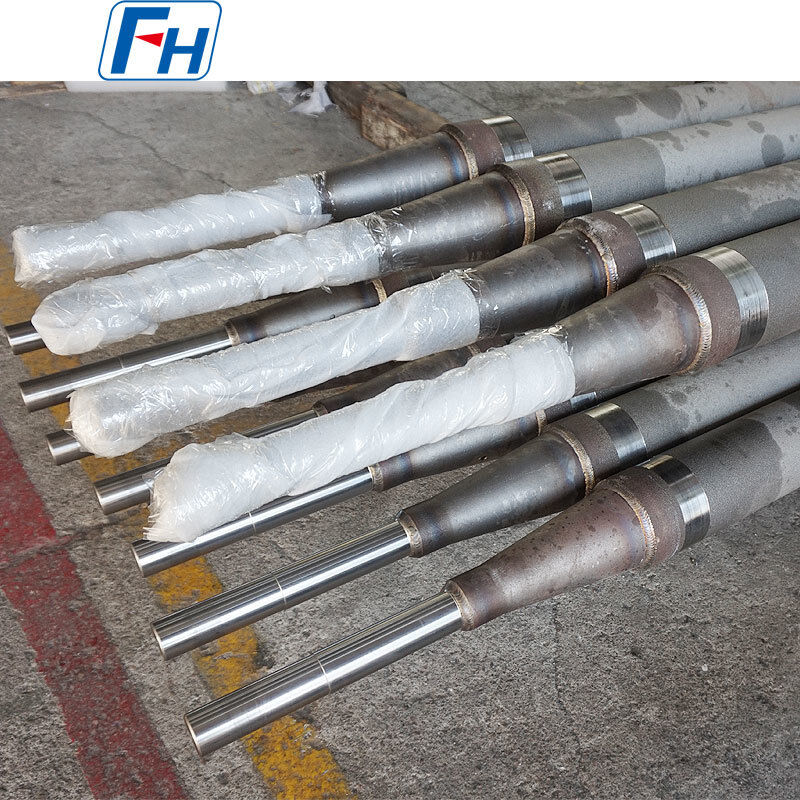

Yes. Shaft diameter, bearing seats, keyways, grooves, coupling sections, threads, and other drive-end features can be manufactured according to customer drawings.

Q2: Can FH® Alloy manufacture replacement furnace rolls?
Yes. Replacement furnace rolls can be produced according to original drawings, existing samples, equipment dimensions, or measured roller specifications.

Q3: Is 1.4848 suitable for every furnace atmosphere?
No single material is suitable for every operating condition. Material selection should consider temperature, atmosphere, load, thermal cycling, scale formation, and expected service life.

Q4: Can straightness and runout be inspected?
Yes. Straightness, radial runout, coaxiality, and concentricity can be inspected according to agreed drawing tolerances.

Q5: Can material certificates and NDT reports be supplied?
Yes. Material certificates, dimensional reports, dye penetrant testing, ultrasonic testing, and other documents can be supplied when specified in the order.
