Place of Origin:
China
Brand Name:
FH®
Certification:
ISO9001, ISO14001
Model Number:
FH 6032
Heat-Resistant Steel Furnace Cover – Ø563 × Ø531 mm
Material: 2535NbW + 800H | Custom High-Temperature Protective Cover | FH® Alloy
FH® Alloy manufactures custom heat-resistant steel furnace covers and high-temperature protective sleeves for industrial furnaces, heat treatment equipment, and other demanding thermal processing applications.

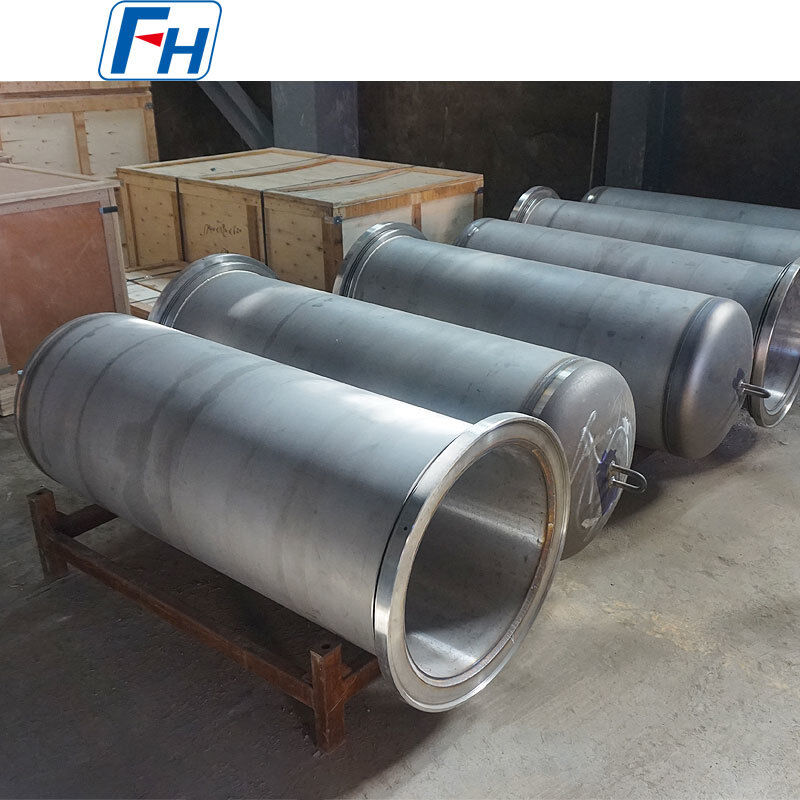

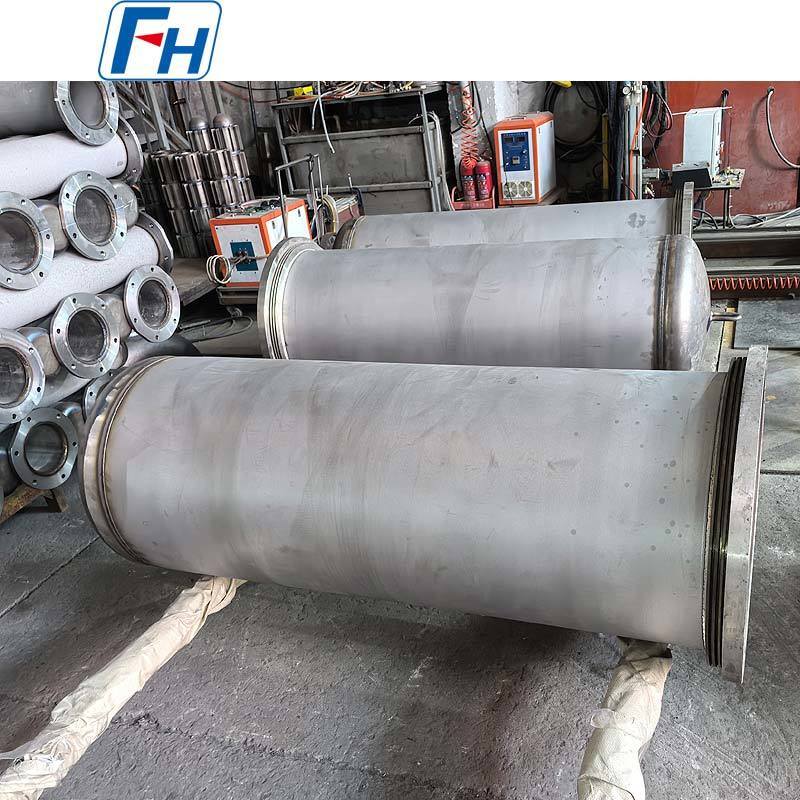

This customized cylindrical furnace cover is manufactured using 2535NbW + 800H heat-resistant materials, with a diameter specification of Ø563 × Ø531 mm. The component features a large cylindrical shell, closed-end structure, and machined flange connection for reliable installation in high-temperature equipment.
FH® Alloy supports complete customization according to customer drawings, operating temperature, furnace atmosphere, installation dimensions, and service conditions.
Product Specifications
| Item | Specification |
| Product Name | Heat-Resistant Steel Furnace Cover |
| Product Type | Cylindrical High-Temperature Protective Cover |
| Material | 2535NbW + 800H |
| Diameter | Ø563 × Ø531 mm |
| Structure | Cylindrical / Closed-End |
| Connection | Flange-Mounted |
| Flange Dimensions | Customized |
| Overall Length | According to Drawing |
| Manufacturing | Casting / Fabrication / Welding / Machining |
| Application | Industrial Furnace / Heat Treatment Equipment |
| Customization | OEM / Drawing-Based Manufacturing |
| Manufacturer | FH® Alloy |
2535NbW + 800H Material Combination
This furnace cover uses a combination of 2535NbW and 800H materials according to the structural and operating requirements of the component.
2535NbW
2535NbW is a high-Cr, high-Ni heat-resistant alloy with niobium and tungsten additions, commonly selected for high-temperature furnace components where strength and structural stability are important.
Typical advantages include:
800H
800H is a nickel-iron-chromium high-temperature alloy widely used in elevated-temperature industrial applications.
Its useful characteristics include:
Using different materials in different sections allows the component design to be optimized according to the temperature, mechanical load, welding requirements, and local service conditions.
Cylindrical Closed-End Design

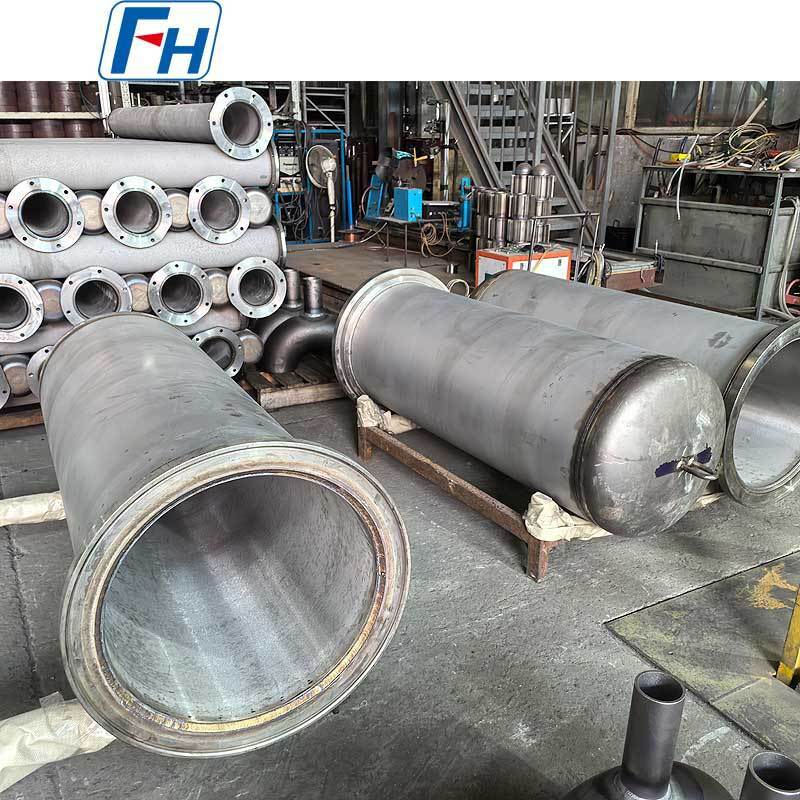

The product features a large cylindrical body with a closed end and flange-mounted connection.
This structure is suitable for applications requiring:
The cylindrical design also provides good structural continuity under thermal service.
Custom Dimensions
This project uses the specified diameter:
Ø563 × Ø531 mm
Other dimensions can be customized according to customer drawings, including:
FH® Alloy supports manufacturing according to engineering drawings, samples, or measured dimensions from existing equipment.

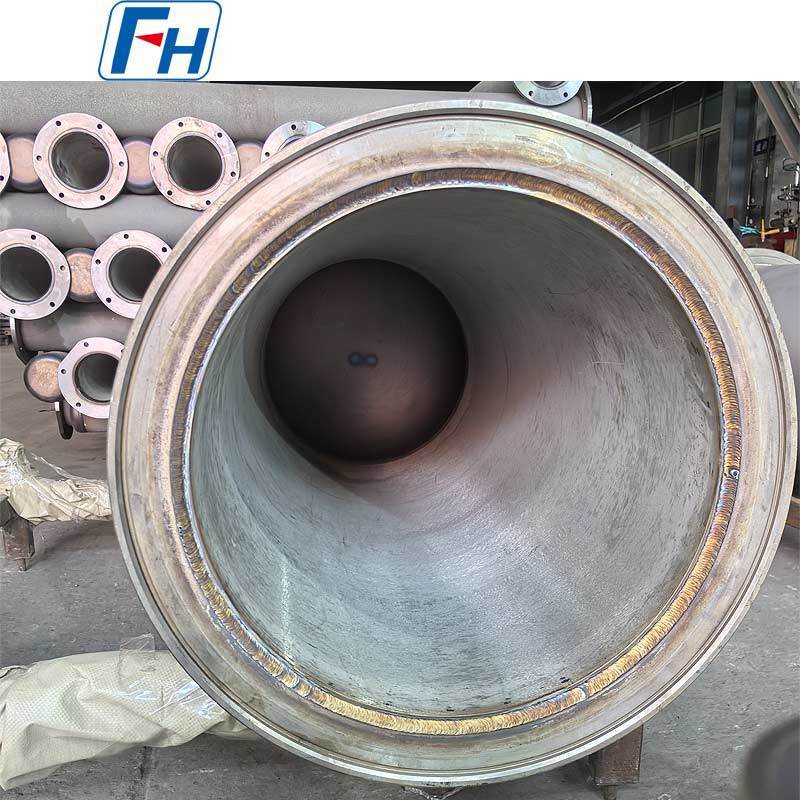

Custom Flange Connection
The flange section can be machined according to the customer's equipment interface.
Custom flange parameters include:
Accurate flange machining helps ensure correct positioning and reliable installation in the furnace system.
Typical Applications
Heat-resistant cylindrical covers of this type can be used in:
The final material and structure should always be selected according to the actual operating environment.
Manufacturing Process
Depending on the drawing and material configuration, production may include:
Material Preparation → Shell Forming / Casting → End-Cap Fabrication → Assembly → Welding → Flange Machining → Dimensional Inspection → Surface Finishing → Final Inspection
For large cylindrical heat-resistant components, key manufacturing controls include:
Key Product Advantages
Dual-Material Design
2535NbW and 800H can be used according to the thermal and structural requirements of different sections.
High-Temperature Service
Designed for industrial furnace environments requiring reliable high-temperature performance.
Large-Diameter Construction
Suitable for customized furnace systems requiring large cylindrical protective components.

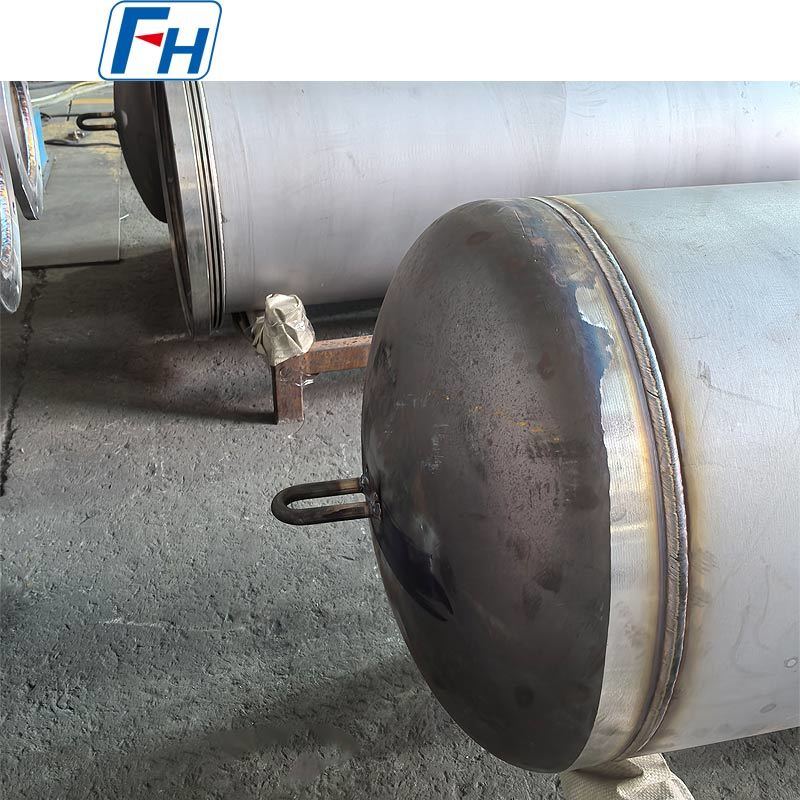

Closed-End Structure
Provides a complete protective enclosure for the specified equipment section.
Precision Flange Machining
Flange and mounting dimensions can be produced according to customer drawings.
OEM Manufacturing
Suitable for furnace manufacturers, equipment builders, and replacement projects.
Quality Control
Depending on project requirements, FH® Alloy can provide:
Additional inspection requirements can be agreed before production.
Why Choose FH® Alloy?
FH® Alloy specializes in custom heat-resistant alloy components for industrial furnaces and high-temperature equipment.
Our manufacturing range includes:
Radiant tubes
We support OEM manufacturing, drawing-based production, material selection, and replacement manufacturing for international customers.
Request a Quote
For an accurate quotation, please provide:
Send your drawing or existing component dimensions to FH® Alloy for technical review and quotation.
FAQ
Q1: Can you manufacture Ø563 × Ø531 mm heat-resistant steel covers?
Yes. FH® Alloy can manufacture this specification and customize other dimensions according to the customer's equipment design.
Q2: Can you manufacture the product using 2535NbW and 800H together?
Yes. Different materials can be applied to different sections according to the drawing and operating requirements.
Q3: Can the flange dimensions be customized?
Yes. Flange diameter, thickness, bolt holes, PCD, and connection dimensions can all be customized.
Q4: Can you manufacture a replacement based on an existing part?
Yes. We can manufacture replacement components from drawings, samples, photographs, or measured dimensions.
Q5: What information is needed for material selection?
Please provide operating temperature, furnace atmosphere, heating conditions, mechanical load, and expected service life.
